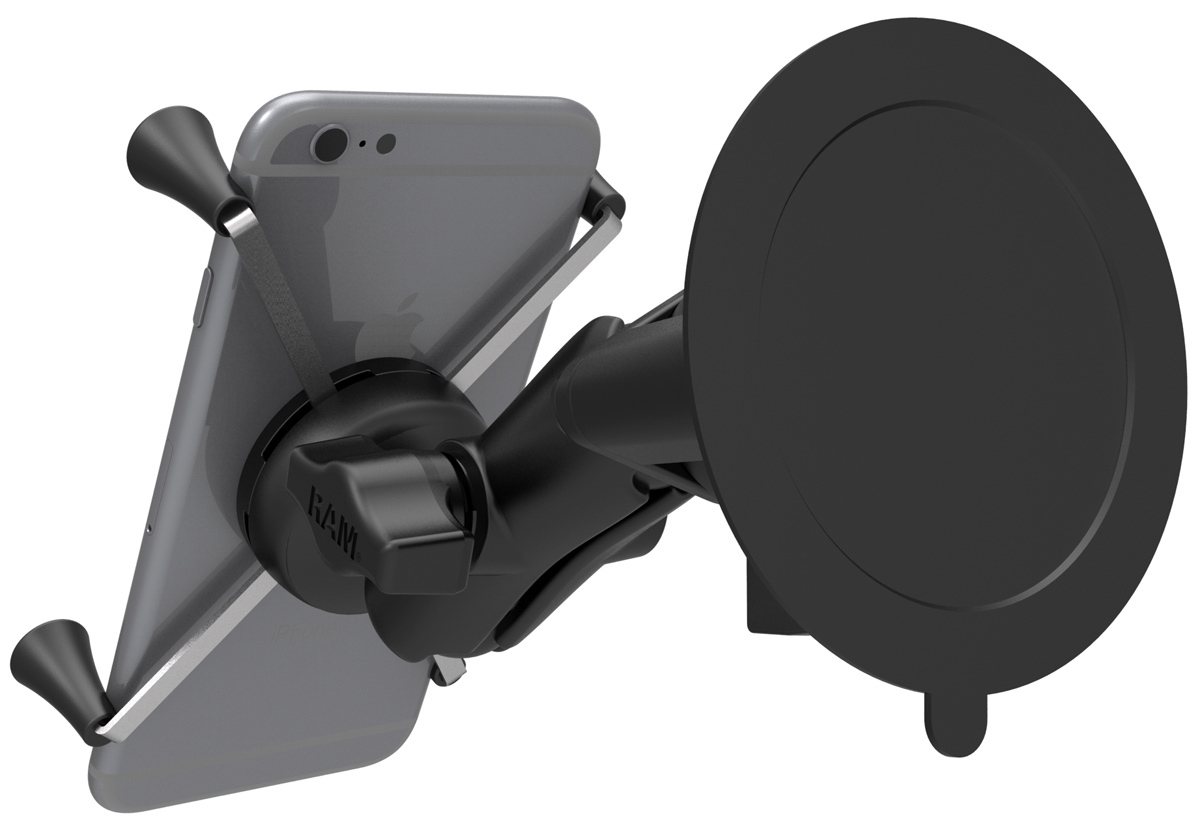

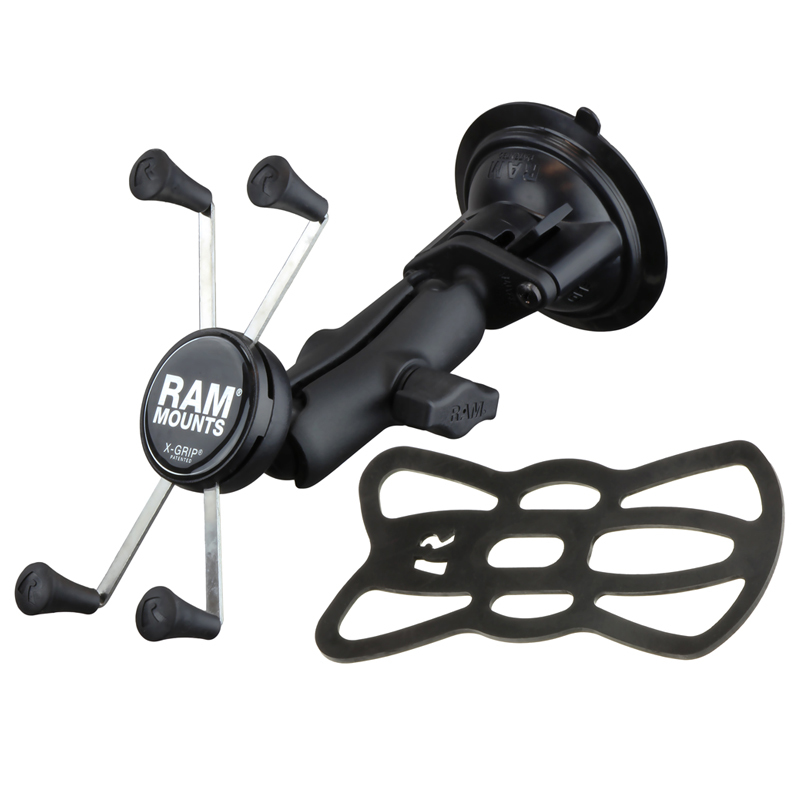

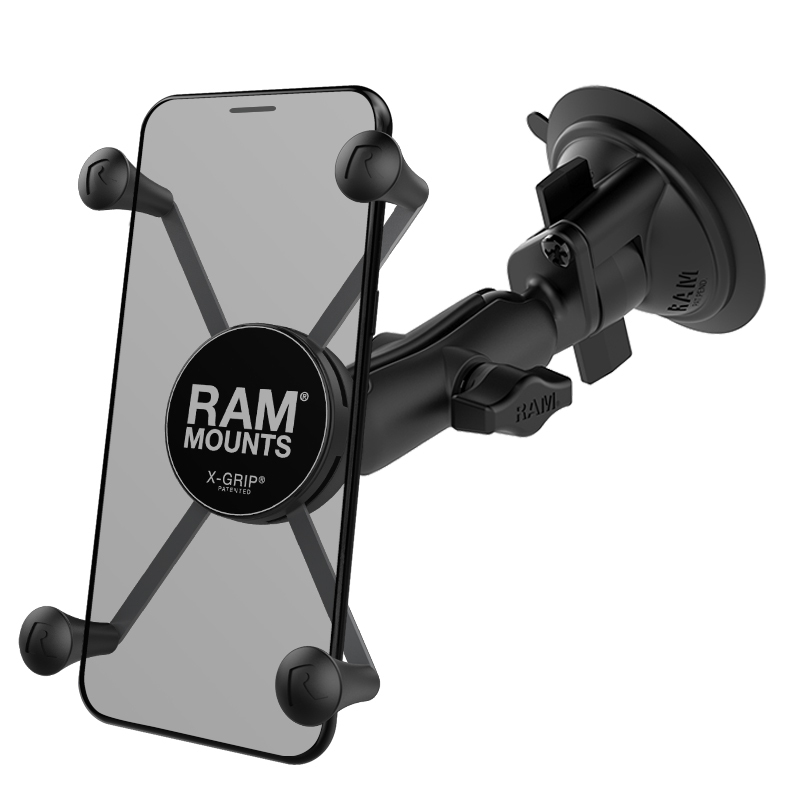

The RAM-B-166-UN10U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and universal spring loaded X-Grip® cradle for large phones and phablets. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the mount to your optimum viewing position. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet.

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications:

  • Cradle Dimensions:
    Minimum Width = 1.75" (Minimum Height = 5.5")
    Maximum Width = 4.5" (Minimum Height = 3.25")
    Depth = 0.875"
  • X-Grip® Features:
    Rustproof
    High strength composite and stainless steel construction
    Spring loaded cradle expands and contracts for perfect fit of your device
    Rubber coated tips will hold device firm and stable
    Socket technology allows for multiple adjustment angles and articulation of device
    Includes Tether for open cockpit and extreme environments
    Lifetime warranty
    Made in U.S.A.
  • Material: Powder Coated Marine Grade Aluminium, Marine Grade Stainless Steel Components & High Strength Composite
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.

RRP 129.95
Barcode # 793442940712
Brand RAM Mounts
