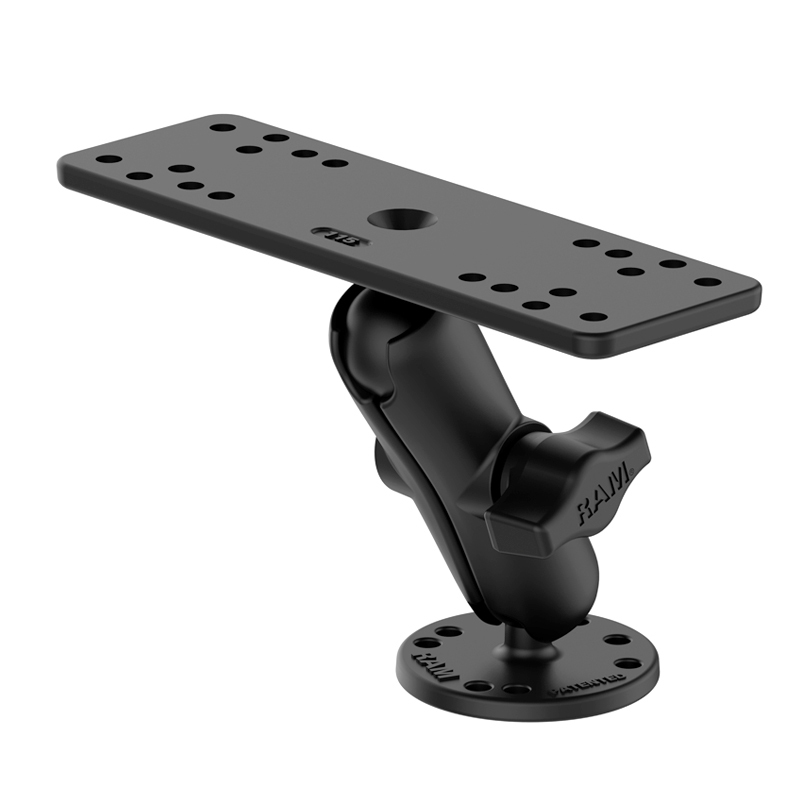

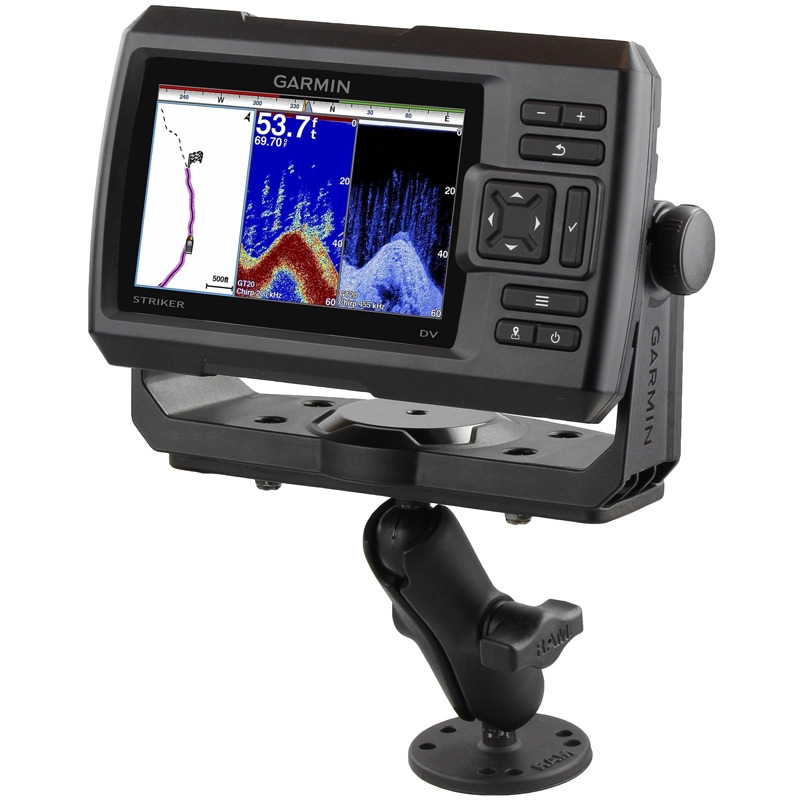

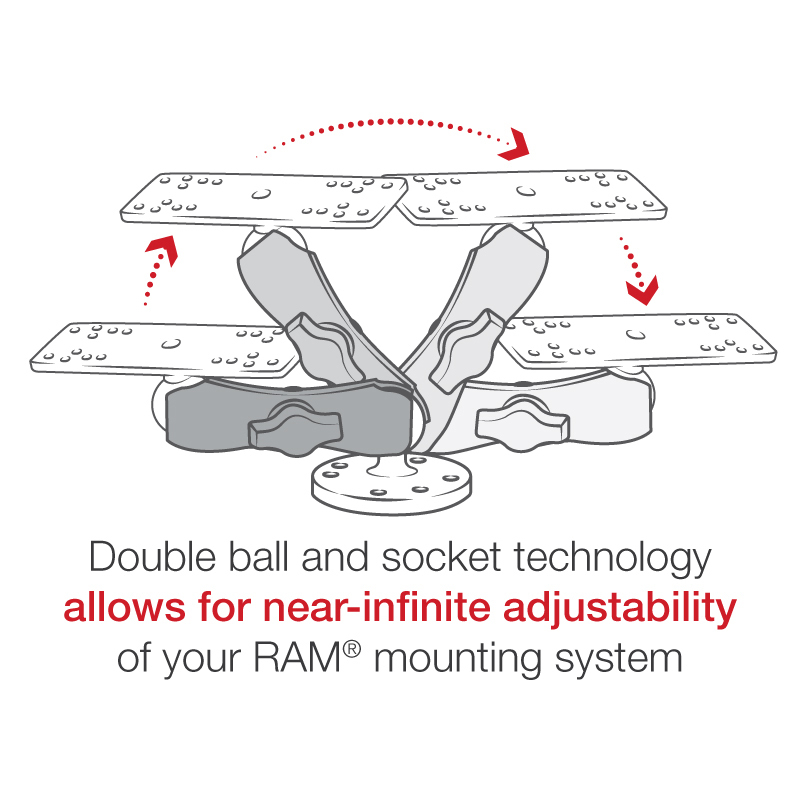

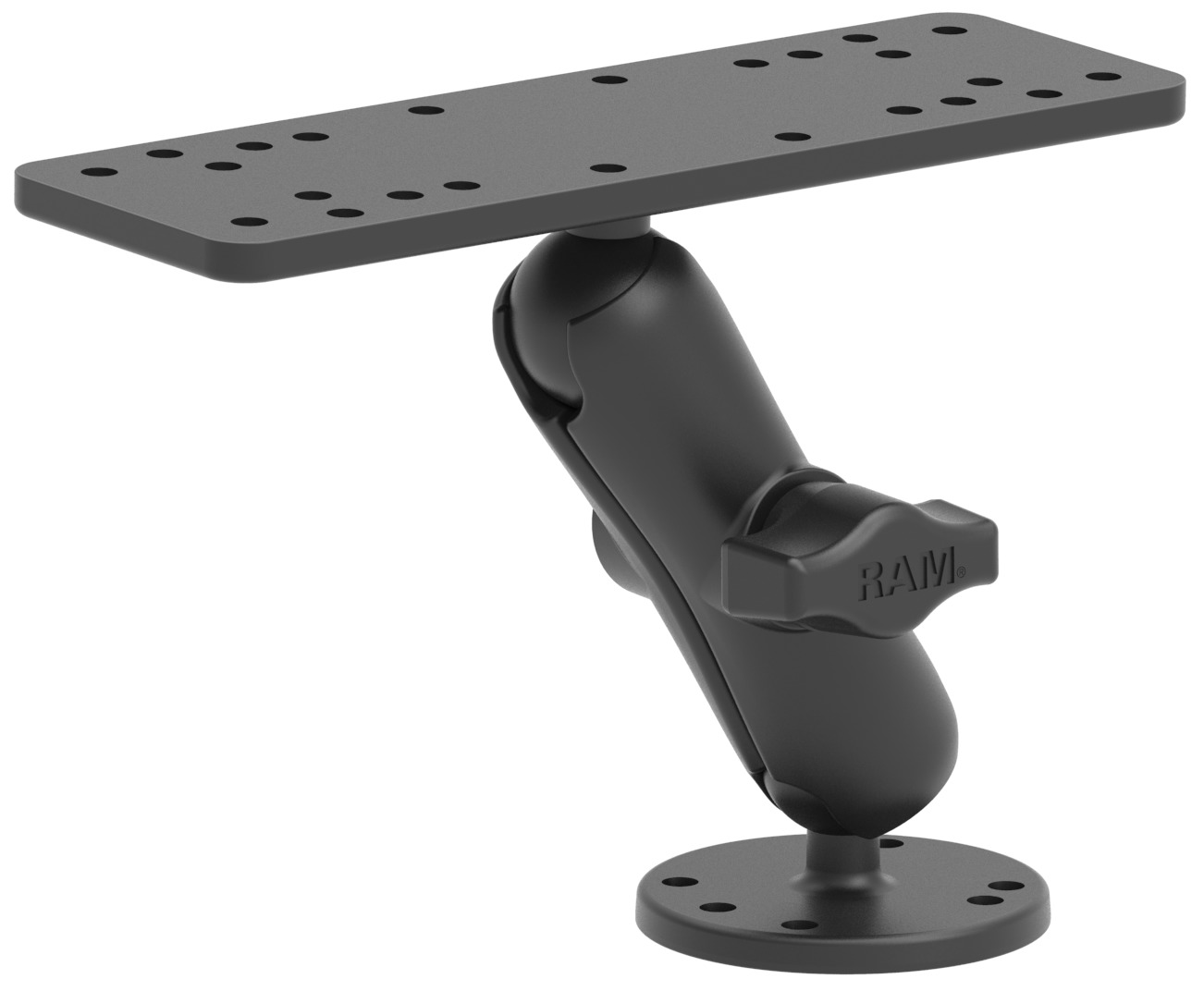

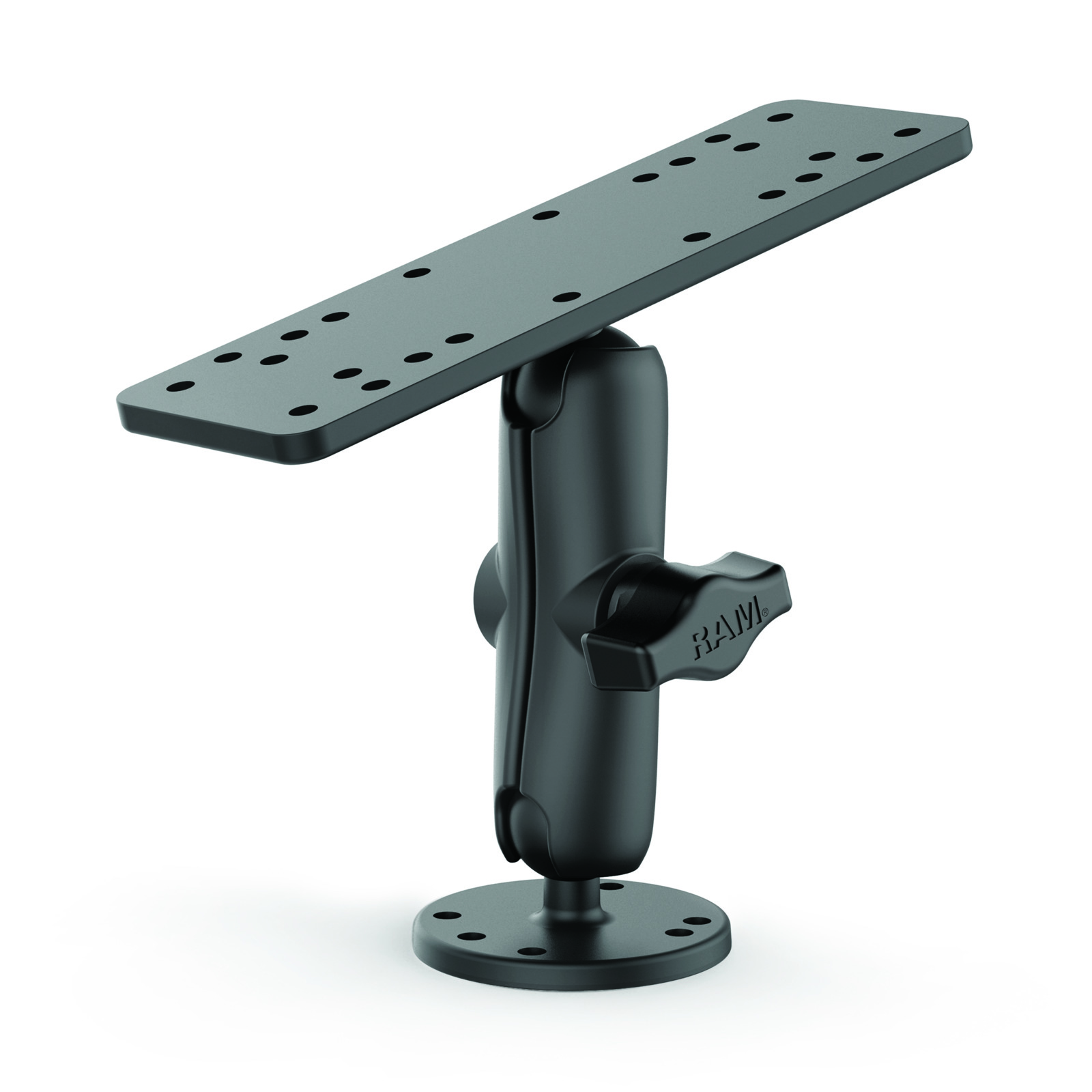

The RAM-B-111U consists of a double socket arm, 2.5" diameter round base and 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

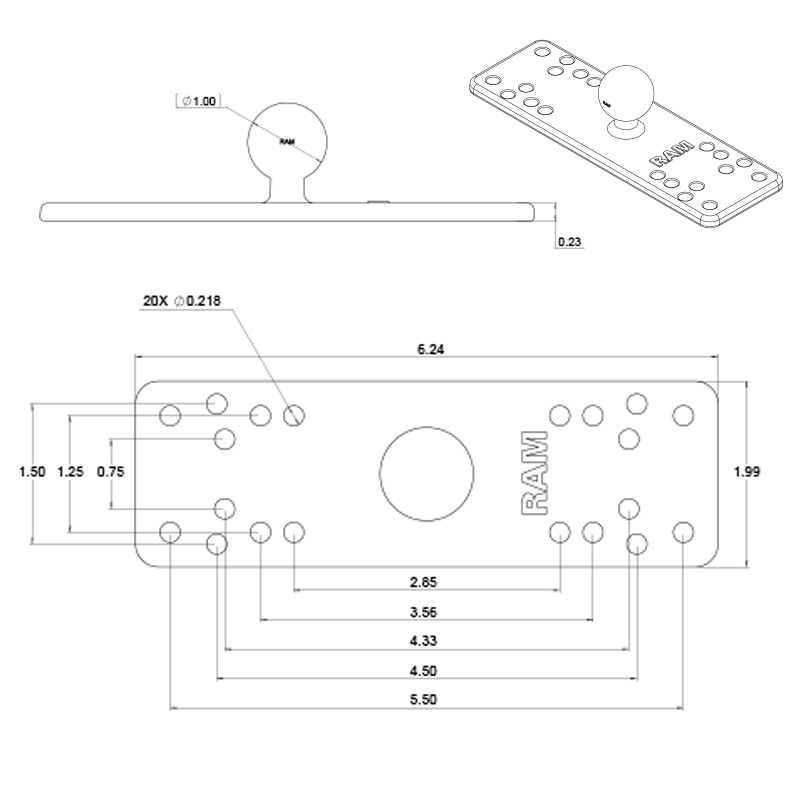

Plate Hole Patterns (PDF)

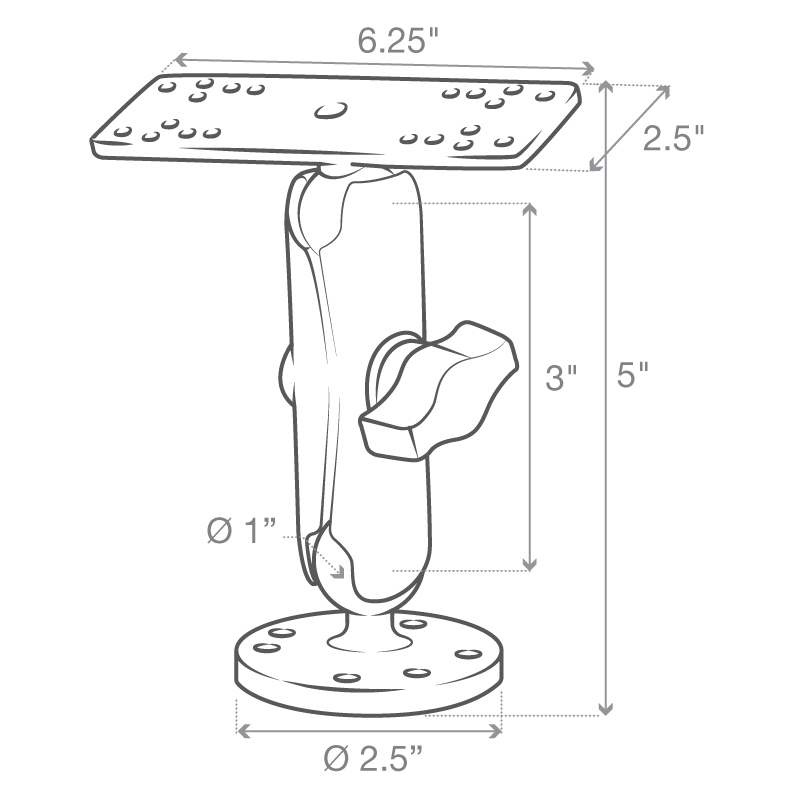

  • Overall Height: 5"
  • Weight Capacity: 5 lbs.
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size

Note:  The "U" in the part number reflects product packaged in poly bag.


RRP 72.95
Barcode # 793442001987
Brand RAM Mounts
