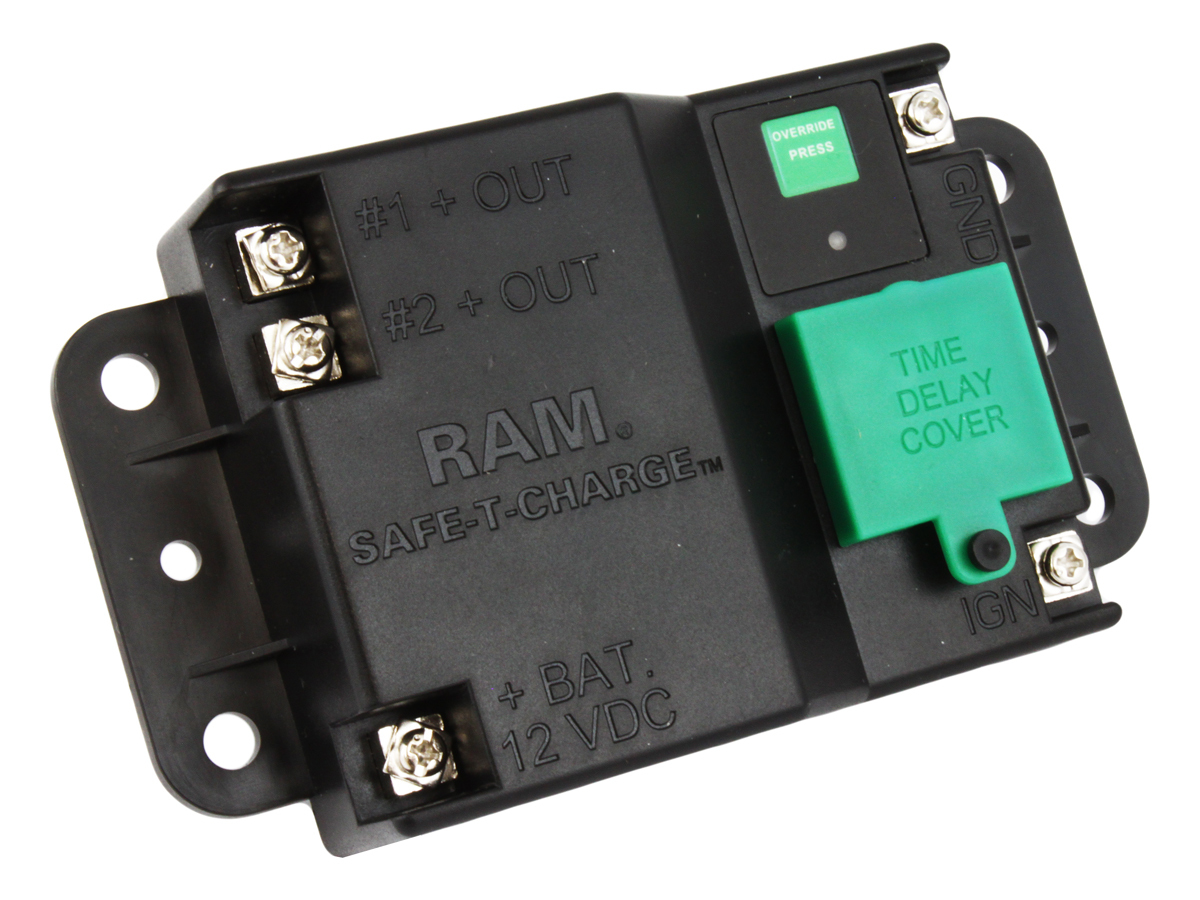

The RAM Safe-T-Charge™ is feature rich and affordable making it the best choice in protecting your vehicle or boat’s electrical system and battery. With multiple configurations available through onboard dip switches, the Safe-T-Charge™ can be configured to shut down connected devices either by a trigger coming from the ignition of the vehicle or by sensing a drop in the DC voltage below a level capable of starting your engine. Easily select a predetermined duration of time to have your connected devices shut down to assure you will always be able to start your vehicle. The RAM Safe-T-Charge™ offers a audible tone starting five minutes before the timer shuts off power to your devices, and continuing every minute until the power is shut down. The on board over-ride switch enables the user to by pass the timed shut off feature in the case of an emergency or other event which requires immediate access to device power.

Specifications:

  • Dimensions: L x W x H = (95 mm/3.74”) x (80mm/3.15”) x (32mm/1.26”)
  • Materials: ABS, flame retardant plastic construction
  • Water-proof for use in marine environments
  • 30AMP Rating
  • 24V jump start protection
  • Battery + 12V input terminal
  • Output terminal (More outputs can be connected by overlapping the wires and fastening.)
  • Ground terminal
  • IGN terminal
  • Over ride switch
  • Timer start LED
  • Selector for DC or IGN sense
  • 3-dip switch for time set
  • Mounting holes
  • Sticker on turning cover for indication of time setting

Note: The "U" in the part number reflects product packaged in poly bag.

RAM Safe-T-Charger™ Specifications & Setup Guide (PDF)

RRP $101.95
Barcode # 793442928802
Brand RAM Mounts
