RAM-111U-B - RAM® Universal Marine Electronic MountSKU: RAM-111U-B

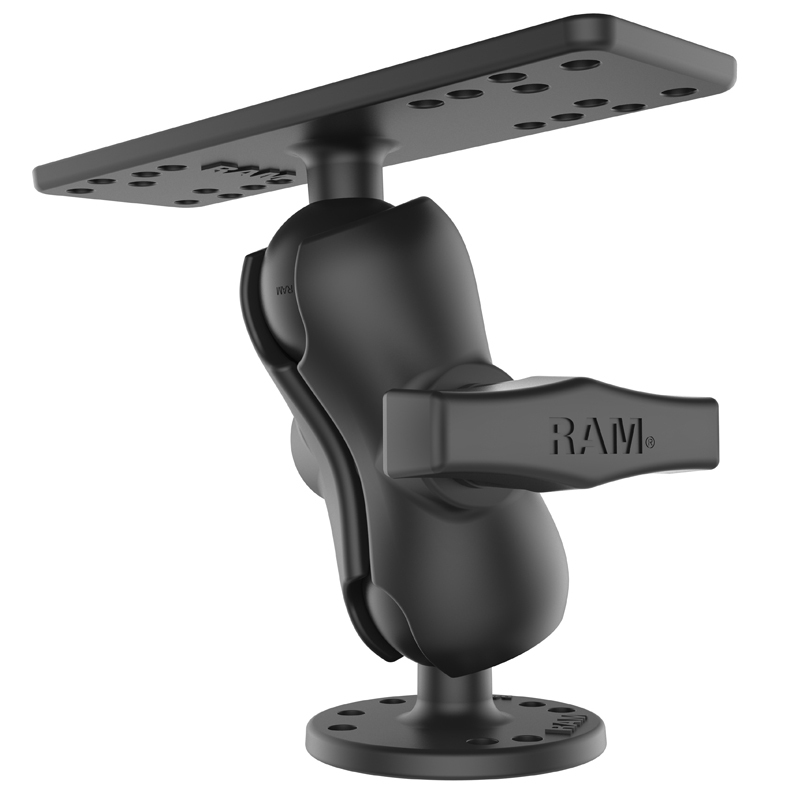

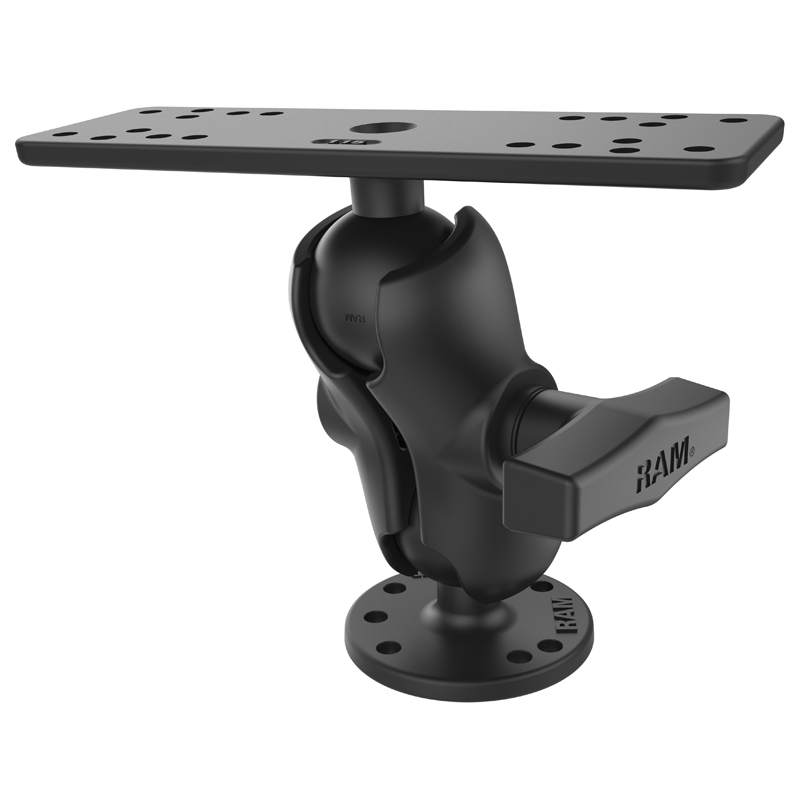

The RAM-111U-B consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT LENGTH double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
- Dimensions: Overall Length: 5.225"
- Material: Powder Coated Marine Grade Aluminium
- Ball Size: C Size 1.5" Rubber Ball
- Weight Capacity: Up to 4 lbs
- Weight: 1.08 lbs.
Note: The "U" in the part number reflects product packaged in poly bag. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Will suit the following units:
Garmin GPSMAP 722xs
Garmin GPSMAP 742xs
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Garmin Fishfinders and GPS Chartplotters
Humminbird Fishfinders and GPS Chartplotters
Lowrance Fishfinders and GPS Chartplotters
Raymarine Fishfinders and GPS Chartplotters
