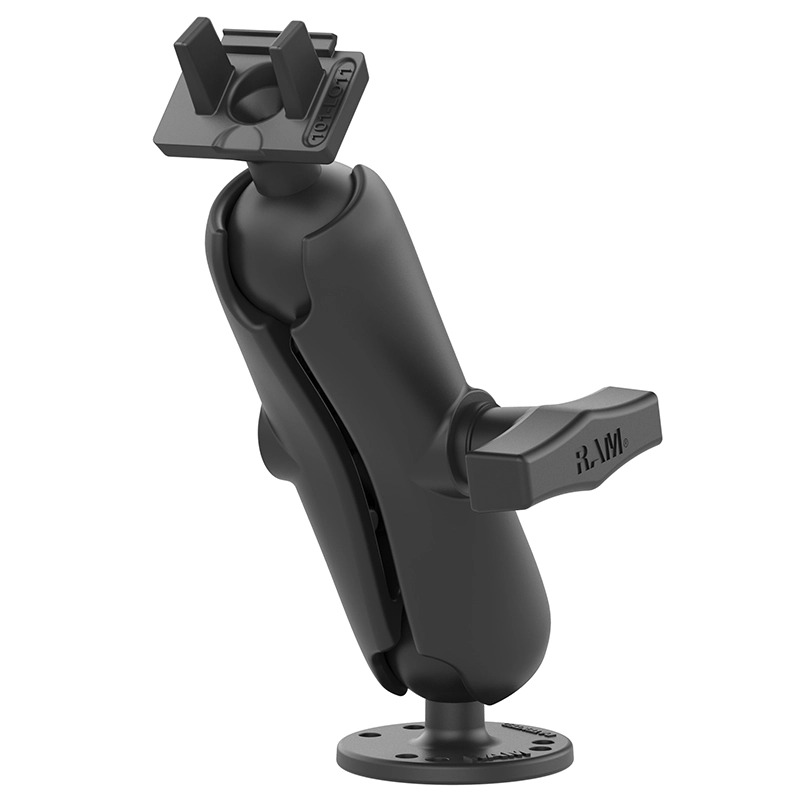

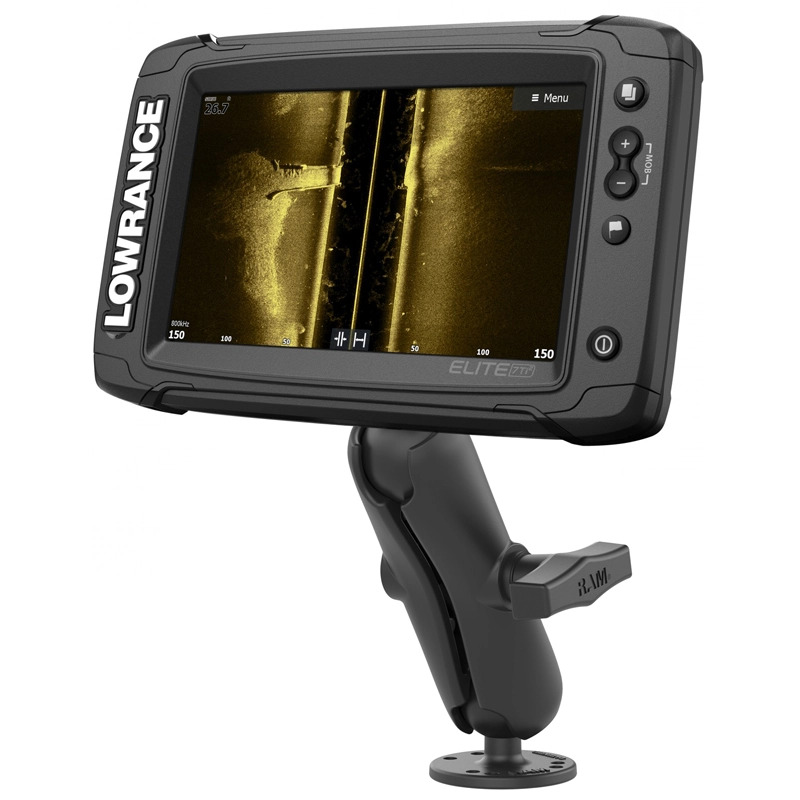

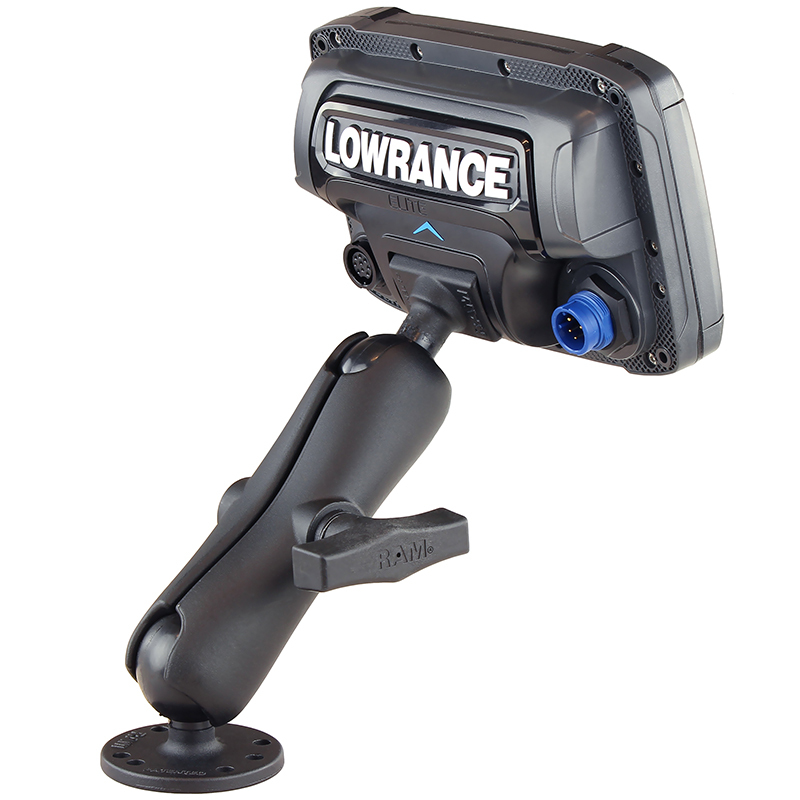

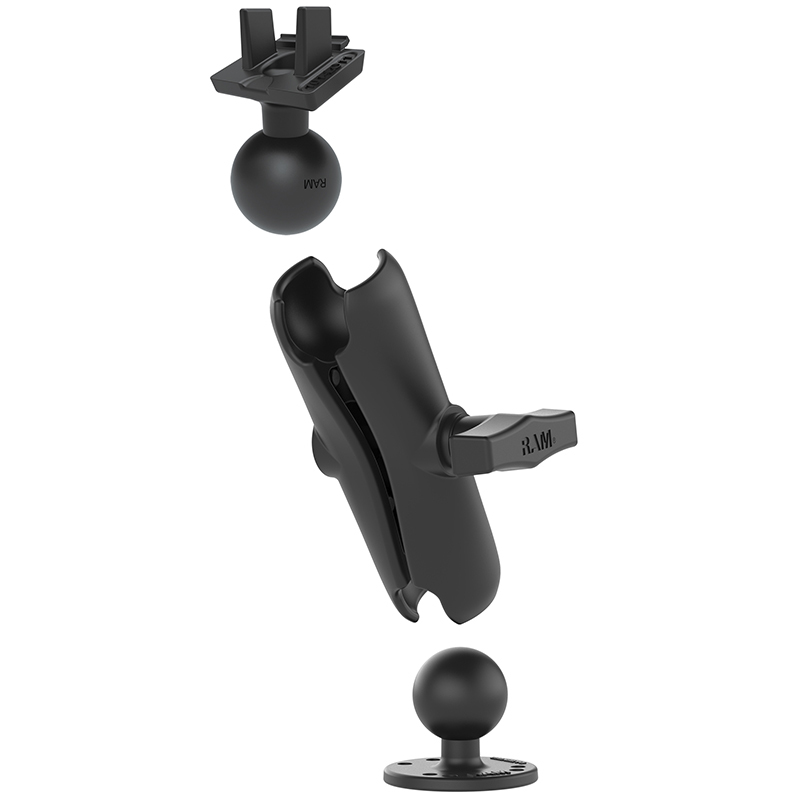

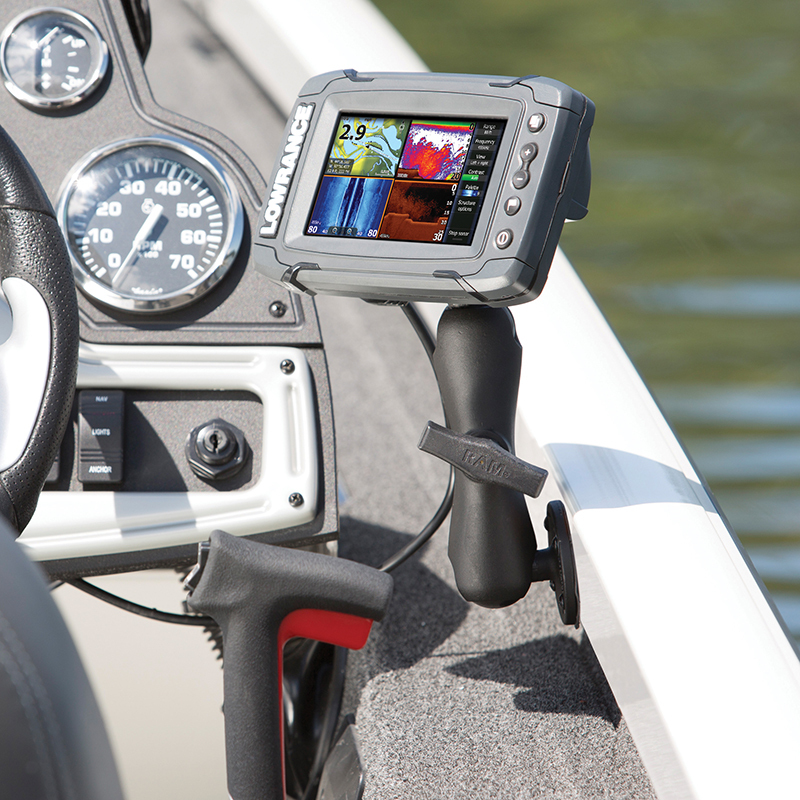

The RAM-101-LO11 consists of a 2.5" diameter round base that contains the universal AMPS hole pattern double socket arm and adapter base that inserts directly to the back of Lowrance Elite-5, Mark-5 and Hook-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications:

• Overall Height: 7.35"
• Material: Powder Coated Marine Grade Aluminium
• Ball Size: 1.5" Rubber Ball Size

Note: Part number reflects product in retail packaging for store shelf display. RAM recommends this mount for "Rugged Use" mounting applications, including heavy weight Lowrance Elite and Mark Fishfinders.

Will suit:

Elite-5

Elite-5 Ti

Elite-7 Ti

Elite-7 Ti²

HOOK-3

HOOK-4

HOOK-5

MARK-5
