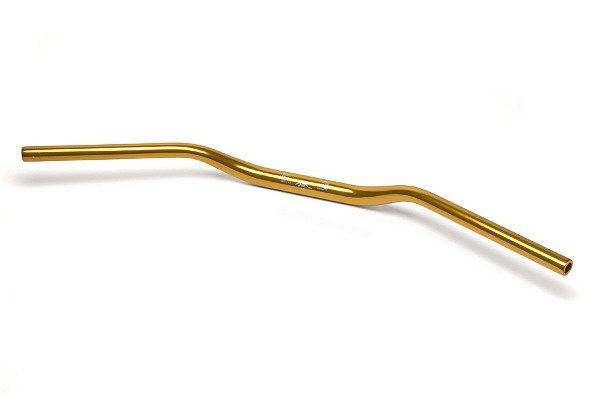

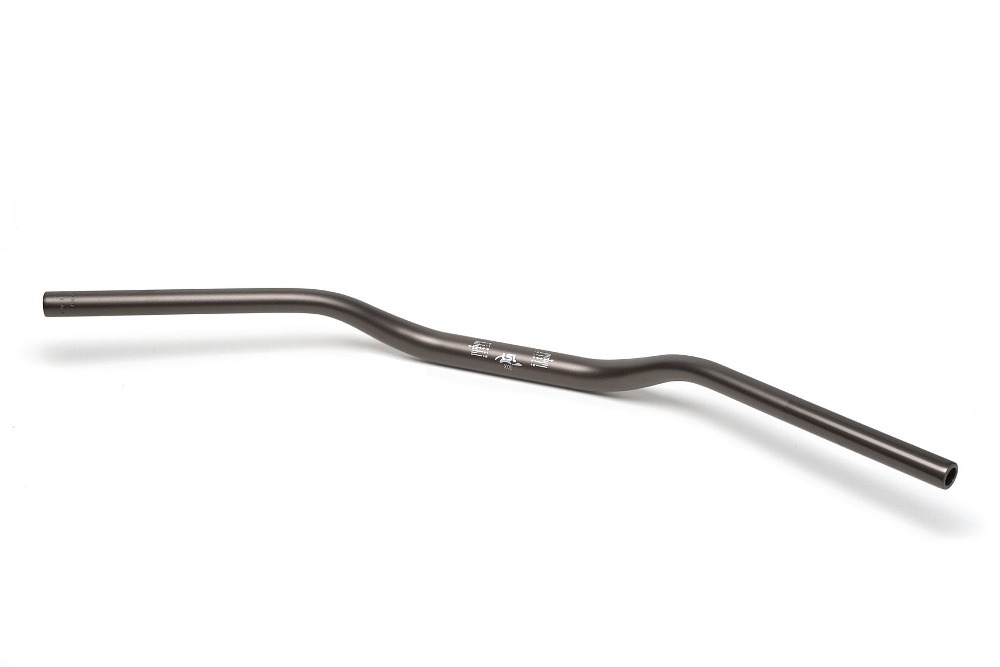

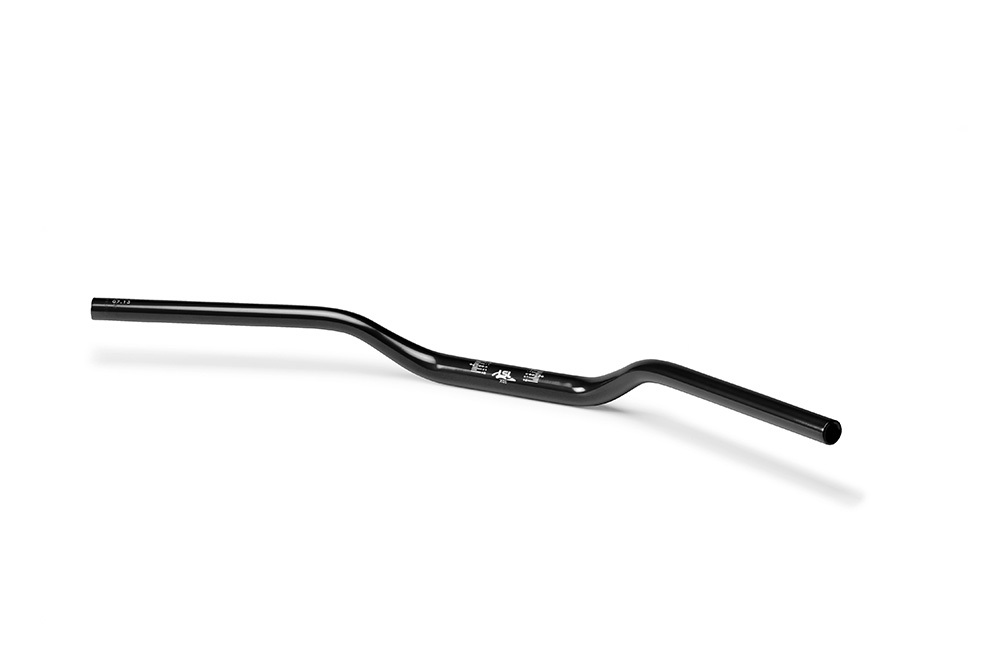

These X-Bar handlebars have a 28.6mm diameter in the clamping range and 22.2mm at the bar ends.

X-Bar the name says it all. This new LSL handlebar, with 1 1/8“ diameter in the area with the highest loading, offers twice the bending resistance of a standard 22mm handlebar. These handlebars are made out of the high-strength alloy 2014 T6. The bar gives less flexibility and offers more tensile strength in all extreme situations.

Specifications:

  • Material: Aluminium 2014 T06, anodised
  • Diameter: clamping range: 28.5mm / bar end outer: 22.2mm / bar end inner: 14mm
  • Dimensions: see diagram below
  • Colours: matt black, blue, matt gold, silver, anthracite
  • Clamping Area: Approximately 160mm
    (Please note that Clamping Area Distance is an estimate only, as it can be difficult to determine exactly where the bar starts to bend)

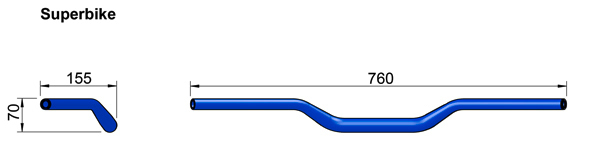

LSL 128AX01 Dimensions

RRP 152.95
Brand LSL-Motorradtechnik
