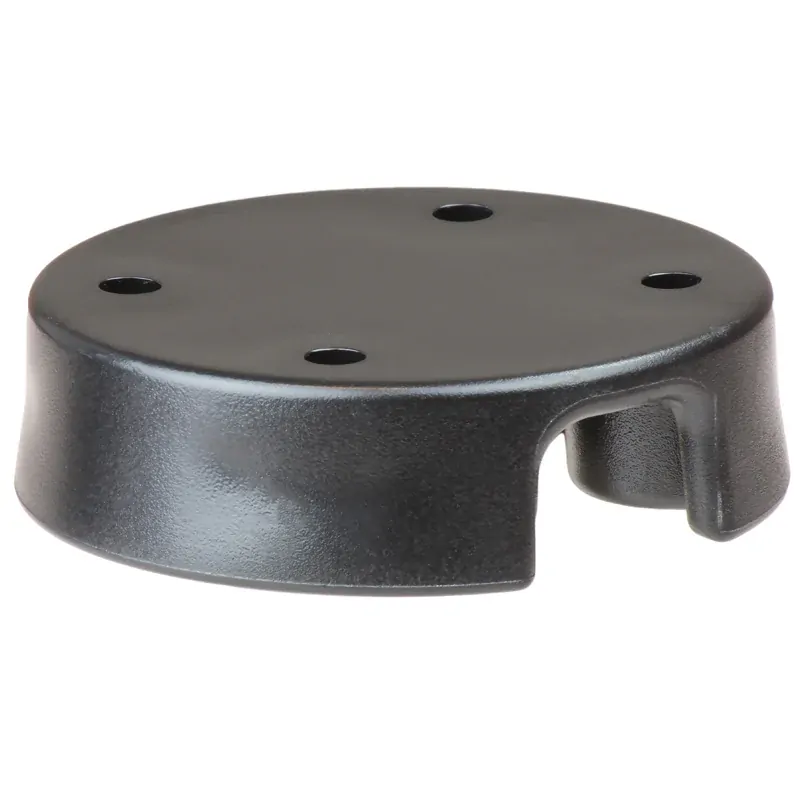

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 5/8" round plates with AMPs hole pattern.

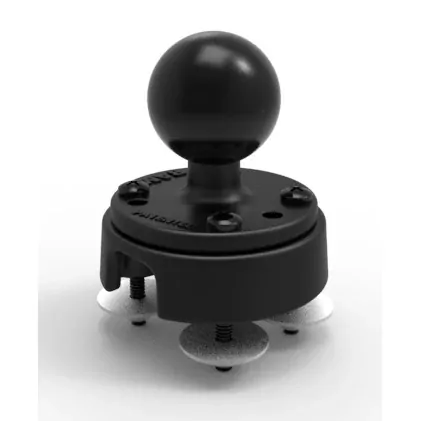

Includes 4-hole AMPS pattern mounting holes for RAM® drill-down bases

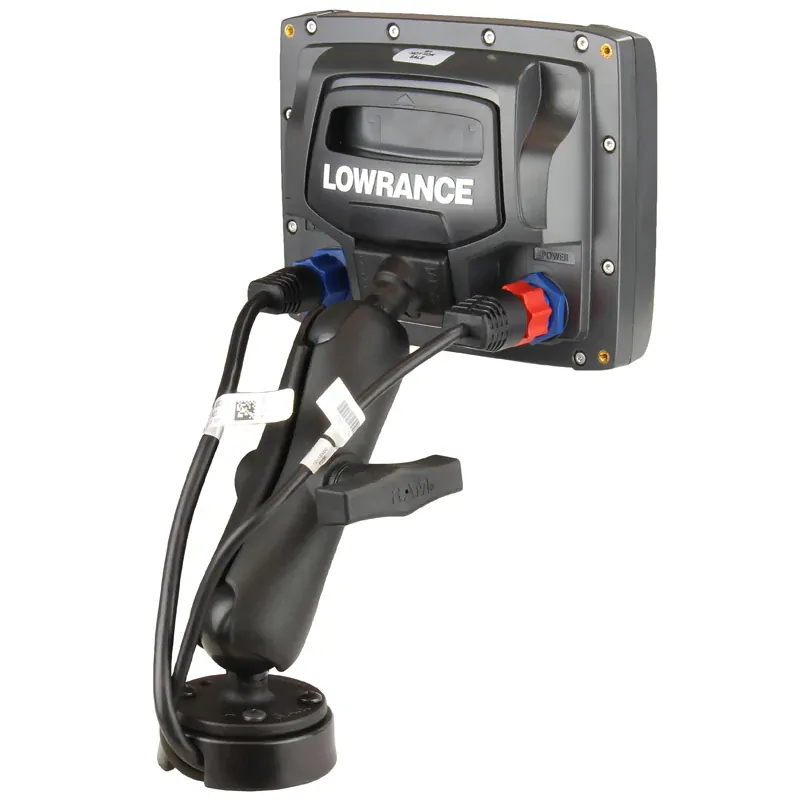

0.56" x 0.7" side cutout allows for routing cables from the power source to the mounted device
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:
(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

product dimensions:
Cable Slot Height: .56"
Cable Slot Width: .7"

clamp range:
Max mounting surface thickness: .68"

hole pattern:
4-Hole AMPS: 1.181" x 1.496"

materials:
High strength composite

packaging type:
Poly Bag

Weight:
0.25 lb

Additional Information:
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.
