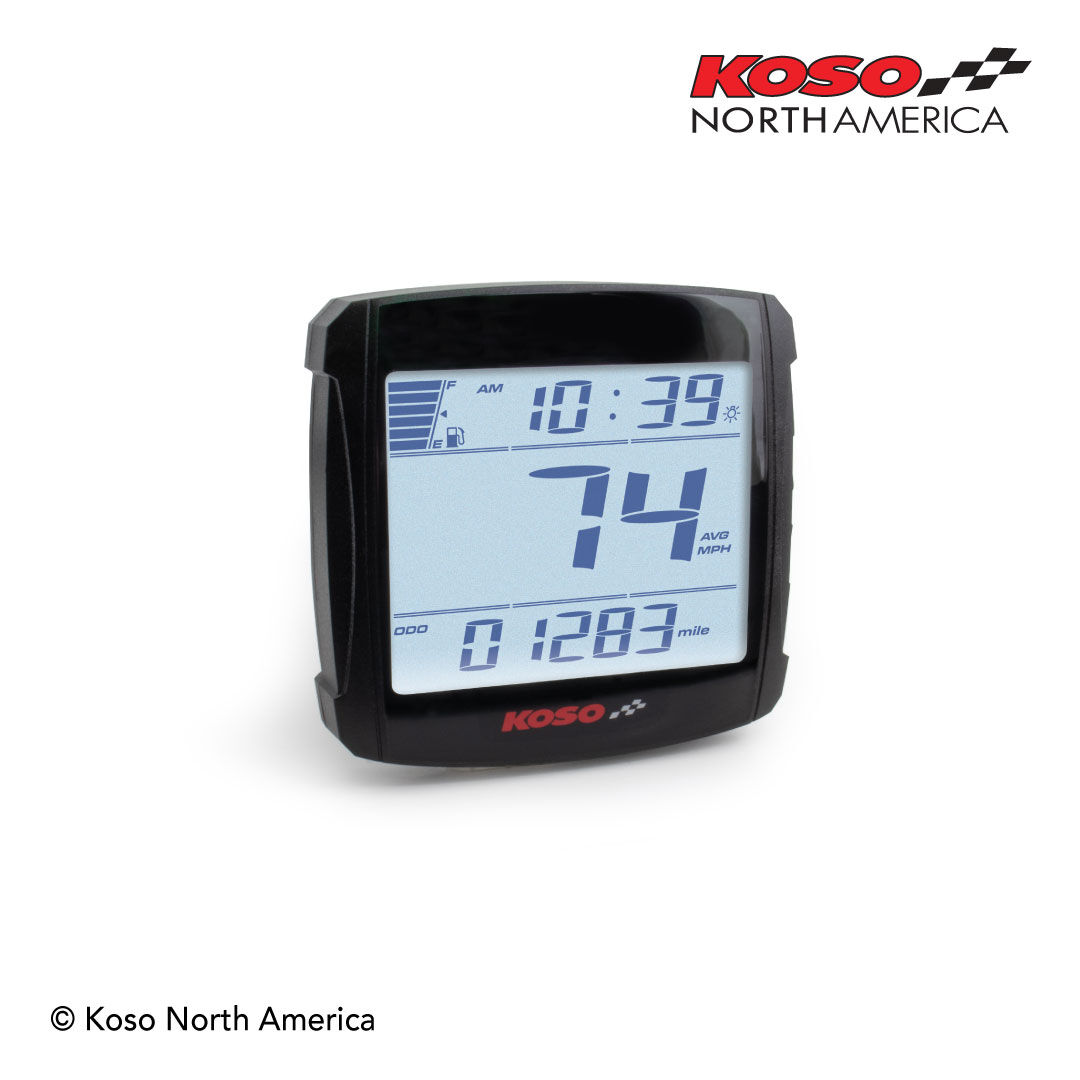

Thinner and lighter than its previous version, the XR‑S speedometer, our innovative XR‑01 speedometer most importantly features a larger, higher quality and easy to read LCD display. New interesting functions were added such as a 2 hour meter readings, a maintenance hour meter for oil change, 2 tripmeter readings, and a useful clock. This meter is simple, user‑friendly, and easy to read during day or night riding. The XR‑01 speedometer is a great fit for any kind of motorcycle, scooter, ATV and more !

 Specifications (R= Range U=Unit)

  • Speedometer
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
    U: 1 MPH or km/h (alternative)
  • Odometer
    R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
  • Tripmeter A/B
    R: 0 ~ 9, 999.9 miles (km)
    U: 0.1 mile (km)
  • Oil maintenance mileage
    R: 300 ~ 5,000 Miles (km) | U: 1 MPH(km)
  • Hour meter
    R: 0 ~ 99,999 hours | U: 1 H
  • Hour meter A/B
    R: 0 ~ 9,999 hours | U: 0.1 H
  • Top speed record
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
  • Average speed record
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
  • Tire circumference
    R: 300 ~ 2,500 mm | U: 1 mm
    Sensitive point: 1 ~ 6
  • Volt meter
    R: DC 8 ~ 18 V
    Flashing light when DC 15.5 V
  • Backlight brightness
    R: 1/5 (darkest) ~ 5/5 (brightess)
  • Fuel level
    R: 6 levels
  • Fuel resistance
    R: 100 Ω / 250 Ω / 510 Ω / USER
  • Clock
    R: 24 H format
  • Effective temperature range
    14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V
  • Sensor included
    Passive speed sensor : BF019J06

Instructions

  Download PDF
RRP 245.95
Brand Koso
