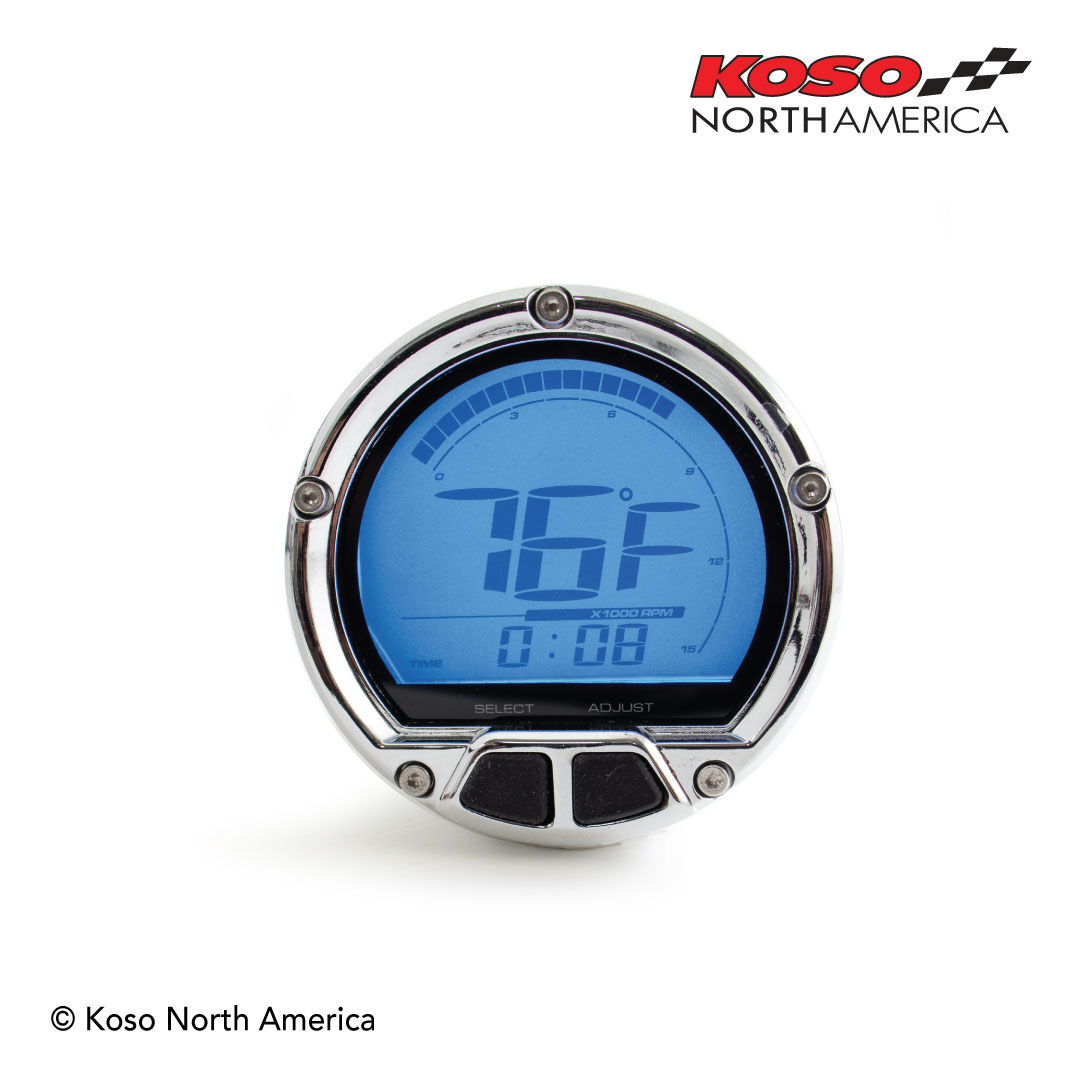

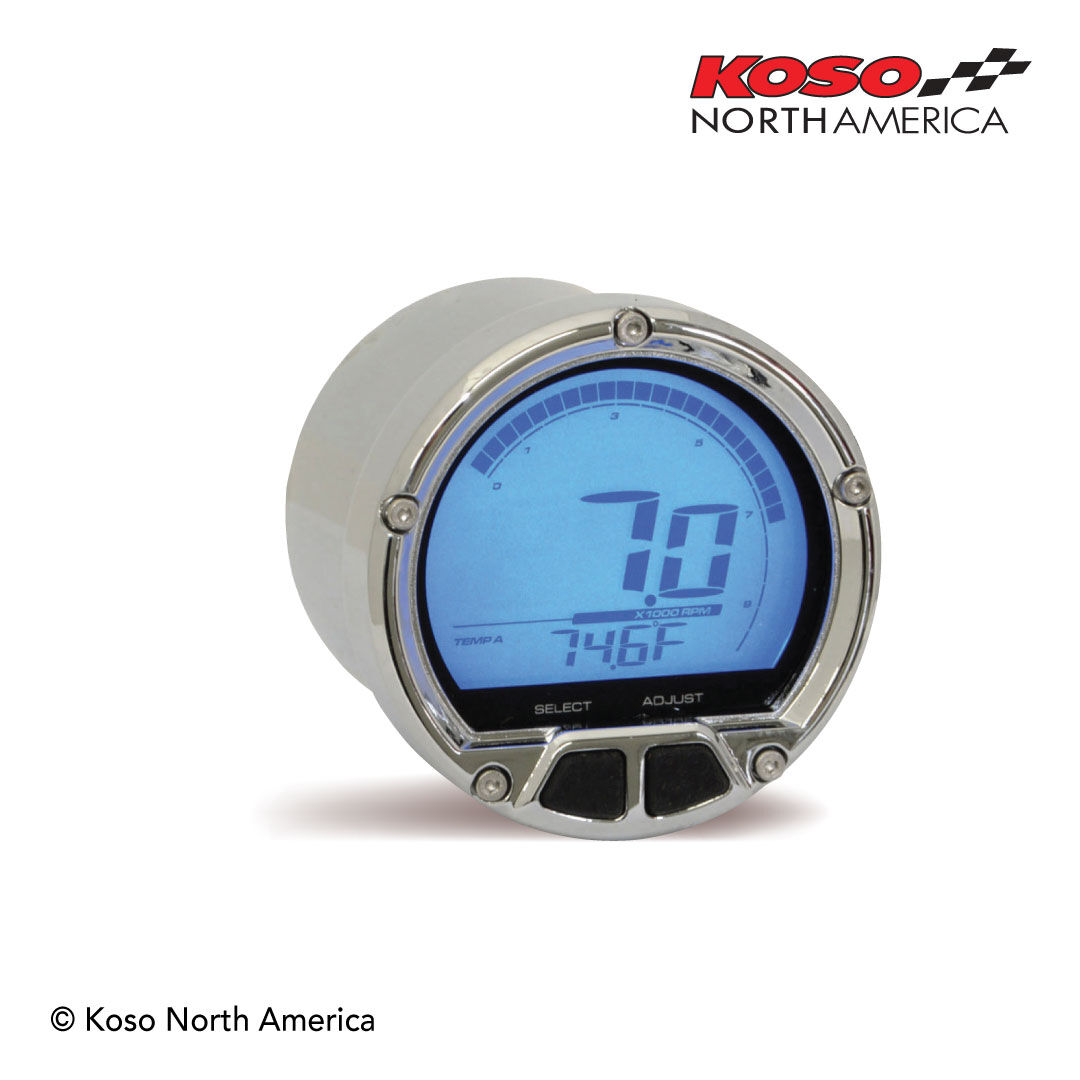

The DL‑02R tachometer has been developed with the latest technology. Its unique casing allows the adjust buttons to be right in the front. This makes the DL‑02R a very convenient instrument to adjust. The big digits and blue backlight make the DL‑02R a very easy meter to read even at night.

 Specifications (R= Range U=Unit)

  • Tachometer
    R: 0 ~ 20,000 RPM | U: 100 RPM
  • Tachometer level
    R: 0 ~ 10,000 / 15,000 / 20,000 RPM
    U: 30 levels
    ■ 10, 000 RPM: 1 level = 333 RPM
    ■ 15, 000 RPM: 1 level = 500 RPM
    ■ 20, 000 RPM: 1 level = 666 RPM
  • Stroke / piston setting
    2 stroke: 1, 2, 3, 4 pistons
    4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
  • Thermometer A/B
    R: 32 ~ 482 °F (0 ~ 250°C)
    U: 0.1°F or °C (alt)
  • Clock R:
    24 H format
  • Effective temperature
    R:14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V
  • Sensor included
    Temp sensor : BF030000 1/8 (BSP) x 28
  • Effective temp. range
    -10 ~ 60ºC (14 ~ 140ºF)
  • Meter standard
    JIS D 0203 S2

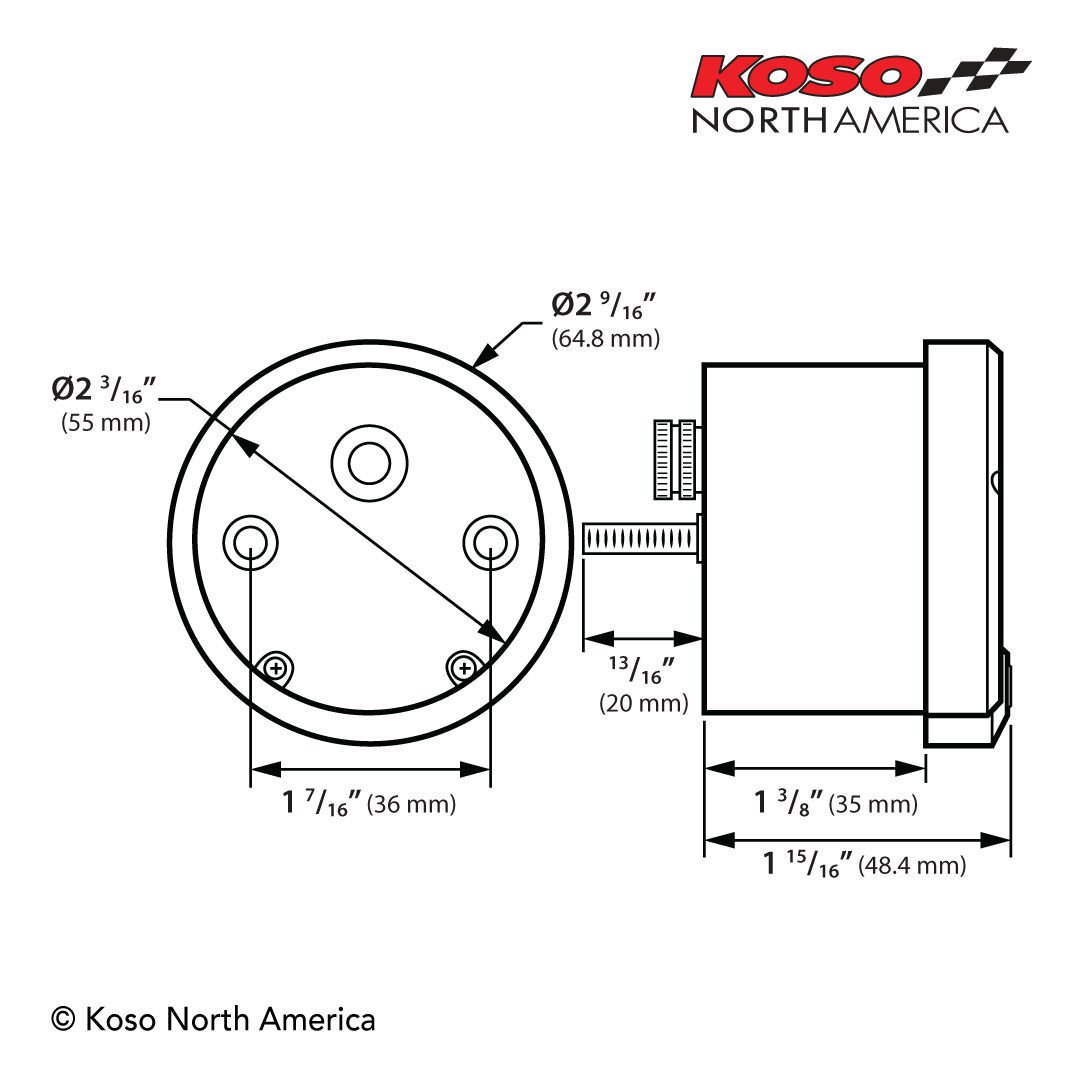

  • Meter size (DxH)
    D55 X 48.4 mm

Instructions

  Download PDF

Where Can I Buy This Item In Australia?

If you’d like to buy this product as a customer, please visit our retailers page to find a stockist near you.

Alternatively, contact us and we can assist further.


RRP (For Retailers) $361.95
Brand Koso
