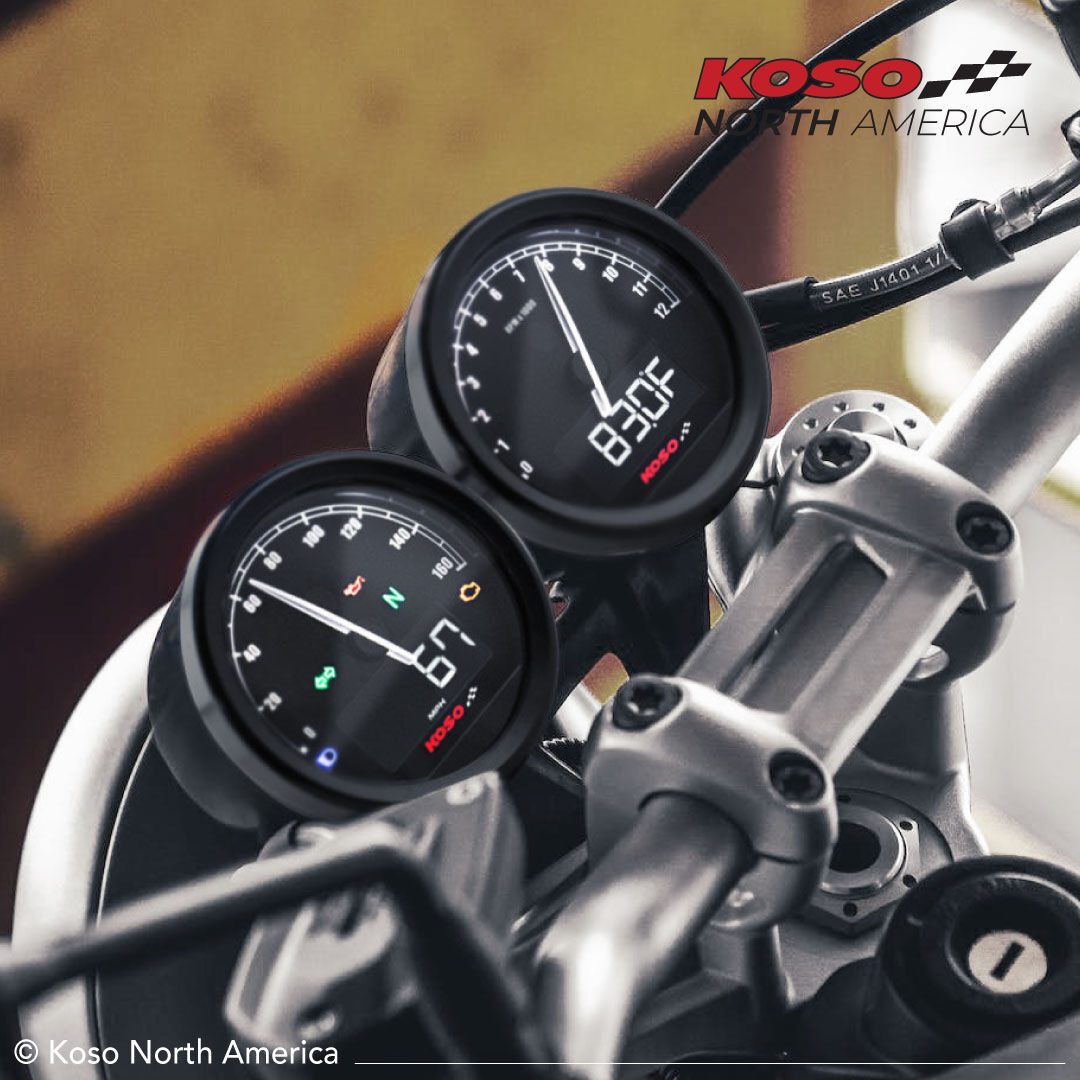

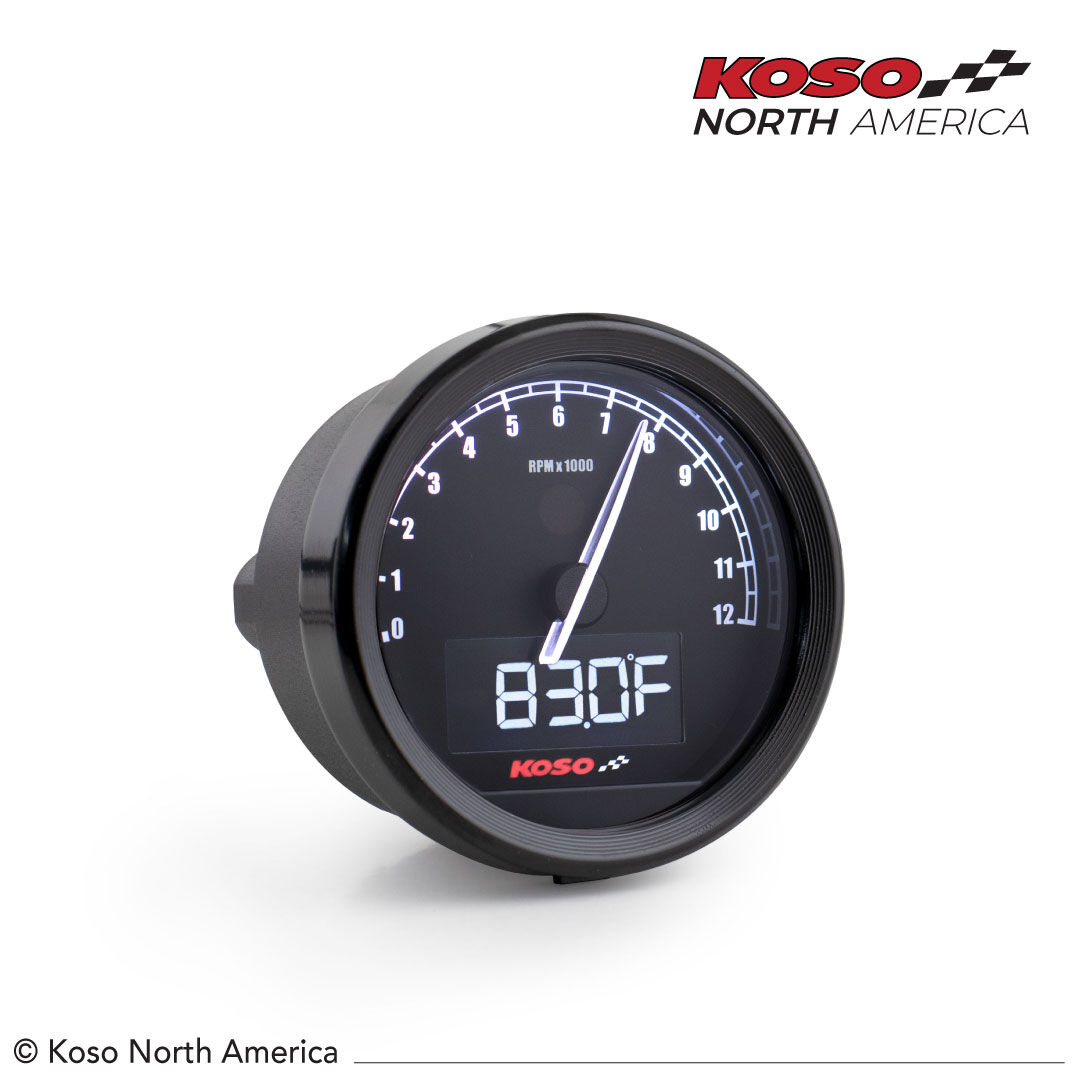

Customize your bike with The TNT‑05R. This tachometer will give a modern look to any motorcycles with its changeable LCD display backlight colors and make it easy to read either it is day or night. Its warning function for temperature and voltage will protect your engine from being damaged.

 Specifications
(R= Range U=Unit)

• Tachometer
  R: 0 ~ 12,000 RPM
  U: 1,000 (Large grid), 500 RPM (small grid)
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Indicator lights
  Over-running light (red)

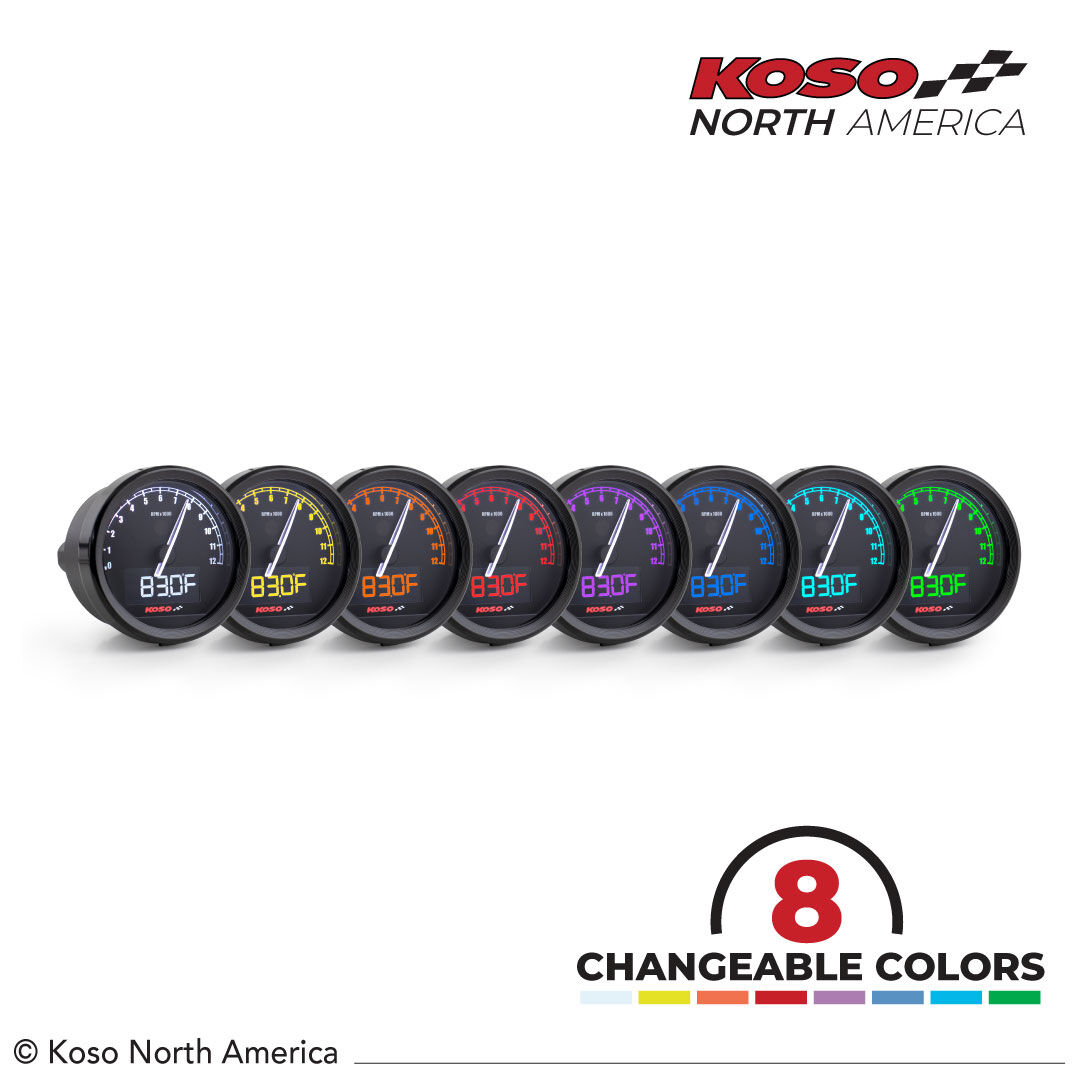

• Backlight colors
  White / Yellow / Orange / Red / Purple / Blue / Light blue / Green
• Volt meter
  R: DC 8 ~ 18 V | Flashing Warning light ≤ value.
• Backlight brightness
  R: 1/3 (darkest) ~ 3/3 (brightest)

• Pre-Shift light warning
  R: 1,000 ~ 11,00 RPM, when setting value is reached or above, warning light will illuminate
  U: 100 RPM
• RPM input pulse
  R: HI-ACT (positive wave pulse) / LO-ACT (negative wave pulse)
• Max. rotating speed
  R: 0 ~ 12,000 RPM (km) U: 1,000 (Large grid), 500 RPM (small grid)
• RPM Shift-light
  R: +100 ~ 12,000 RPM U: 100 RPM, warning light on > value
• Thermometer
  R: 32 ~ 482 °F (0 ~ 250 °C)
  U: 0.1 °F or °C (alternative)
• Over temperature warning
  R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C)
