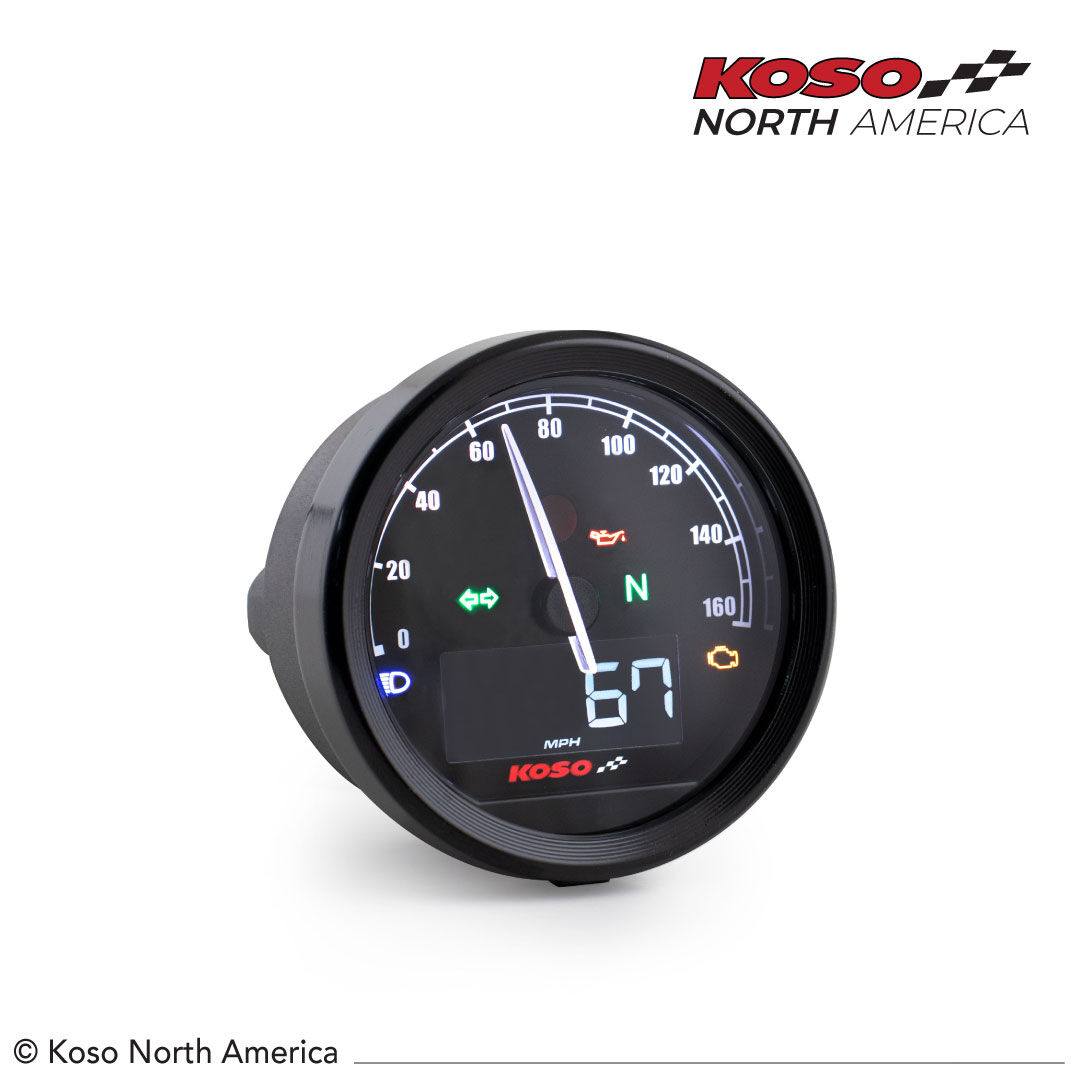

Providing basic functions such as speed, odometer, tripmeter, hour meter, fuel, voltage, clock and stopwatch, the TNT-05S speedometer is equipped with 8 changeable LCD display colors that also includes all the necessary indicator lights to give you all the data you need. The illuminated backlight makes the instrument very easy to read even in the darkest conditions.

 Specifications
(R= Range U=Unit)

• Speedometer
  R: 0 ~ 160 km/h (MPH)
  U: 20 km/h (MPH) (Large grid), 10 km/h (MPH) (small grid)
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Indicator lights
  Composite warning light / Speeding warning light / Neutral / High beam / Turn signals / Check engine / Motor oil light
• Fuel meter
  R: 10 levels | U: 1 level = 10 %
• Fuel resistance
  R: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF
• Clock
  12 H or 24 H format
• Backlight colors
  White / Yellow / Orange / Red / Purple / Blue / Light blue / Green

• Overspeeding warning
  R: 19 ~ 100 MPH (30 ~ 160 km/h)
  U: MPH or km/h, can return to zero manually
• Odometer
  R: 0 ~ 99,999 miles (km) U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 9,999.9 miles (km) U: 0.1 mile (km)
• Tire circumference
  R: 300 ~ 2,500 mm
  U: 1 mm Sensitive point: 1 ~ 20
• Thermometer
  R: 32 ~ 482 °F (0 ~ 250 °C)
  U: 0.1 °F or °C (alternative)
• Over temperature warning
  R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C)
• Volt meter
  R: DC 8 ~ 18 V | Flashing Warning light ≤ value.
• Backlight brightness
  R: 1/3 (darkest) ~ 3/3 (brightest)
