(for Baggers 2014-2023)

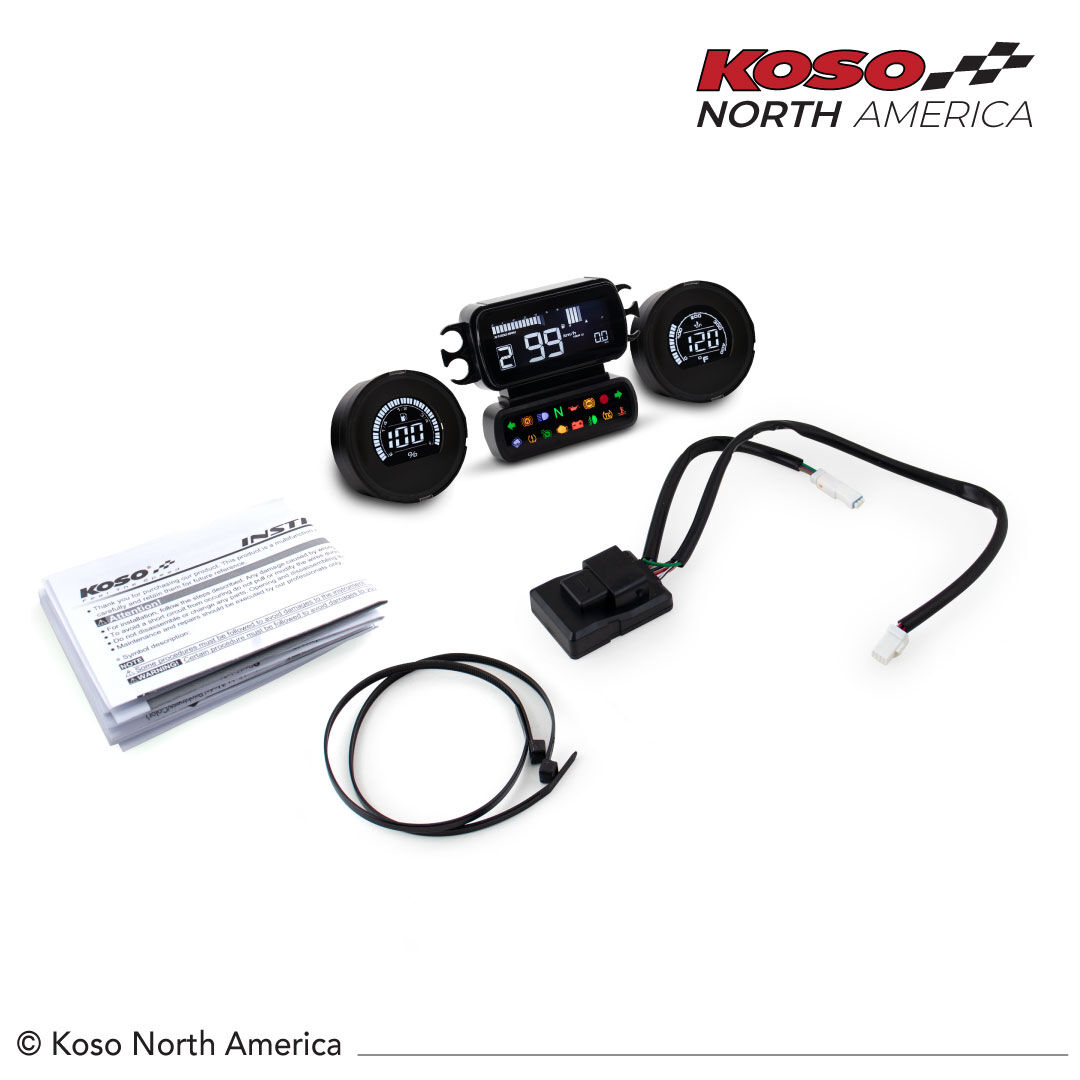

This new plug and play D2 gauge kit for Baggers now comes with the fuel level & engine temperature meters, giving a unique look and experience to your motorcycle.

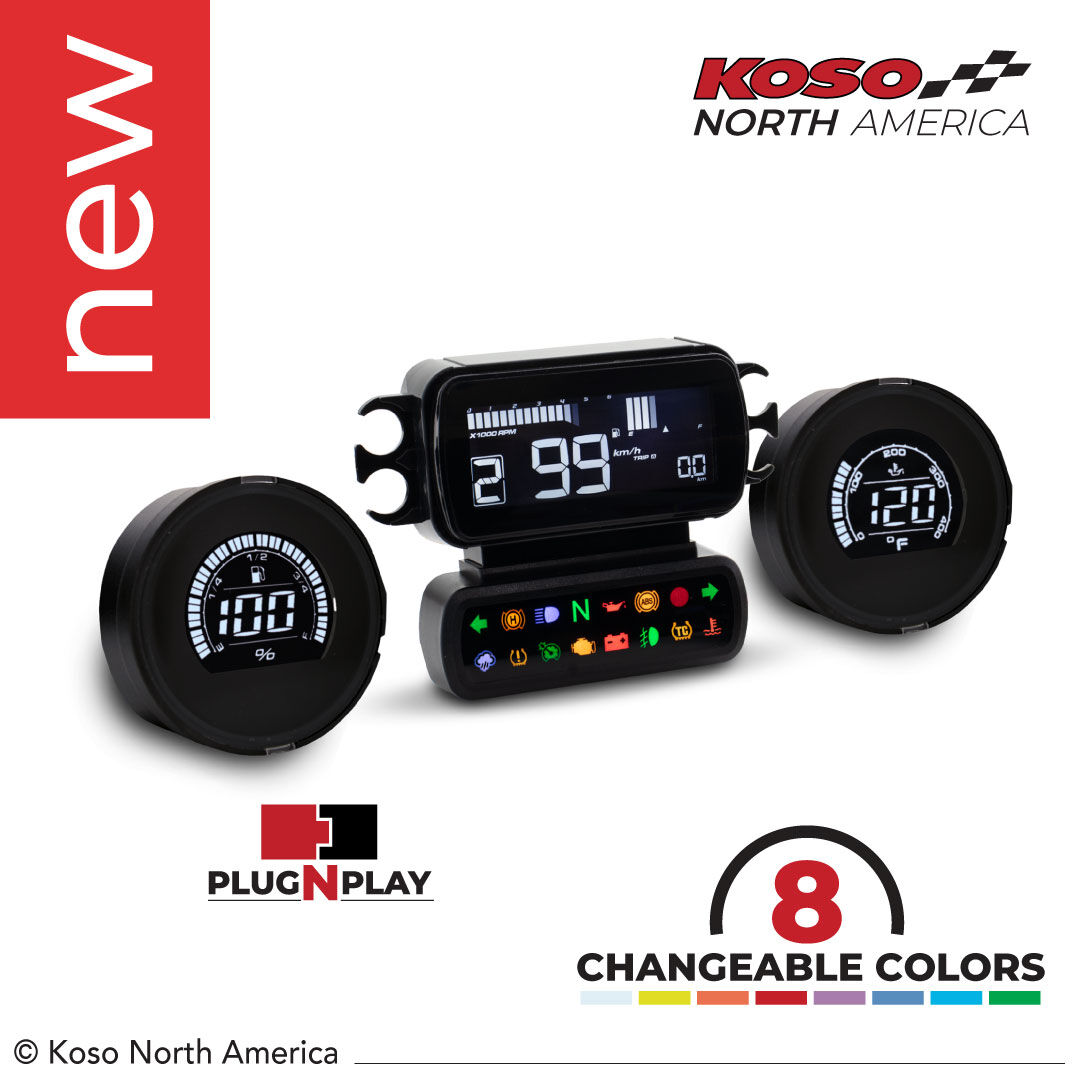

It is also equipped with an 8-color changeable LCD display and features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works with your bike’s CANBUS system.

  Fitment chart

*To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.

**If you already own the D2 gauge for Baggers (BA080030), you can purchase the gauge kit part# BA080051 as an add-on to your gauge. (Includes fuel level, engine temp meter & adapter harness.)

Optional accessories :

Air pressure sensor kit for air suspension (part# BZ012000)

12'' extension wire (part# 20-A91803A)

Rubber gasket (part# BZ080000)

 Specifications
(R= Range U=Unit)

• Backlight color
  R: white, red, orange, yellow, blue, light blue, purple, green
• Engine temperature
  R: -38 ~ 572 °F (-39 ~ 300 °C)
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)
• Fuel Meter
  R: 10 levels
• Operating voltage
  DC 12 V
• Operating temperature
  -20 ~ 85 °C
• Storage temperature
  -30 ~ 90 °C
• Specifications
  JIS D 0203 (S2)

Instructions
