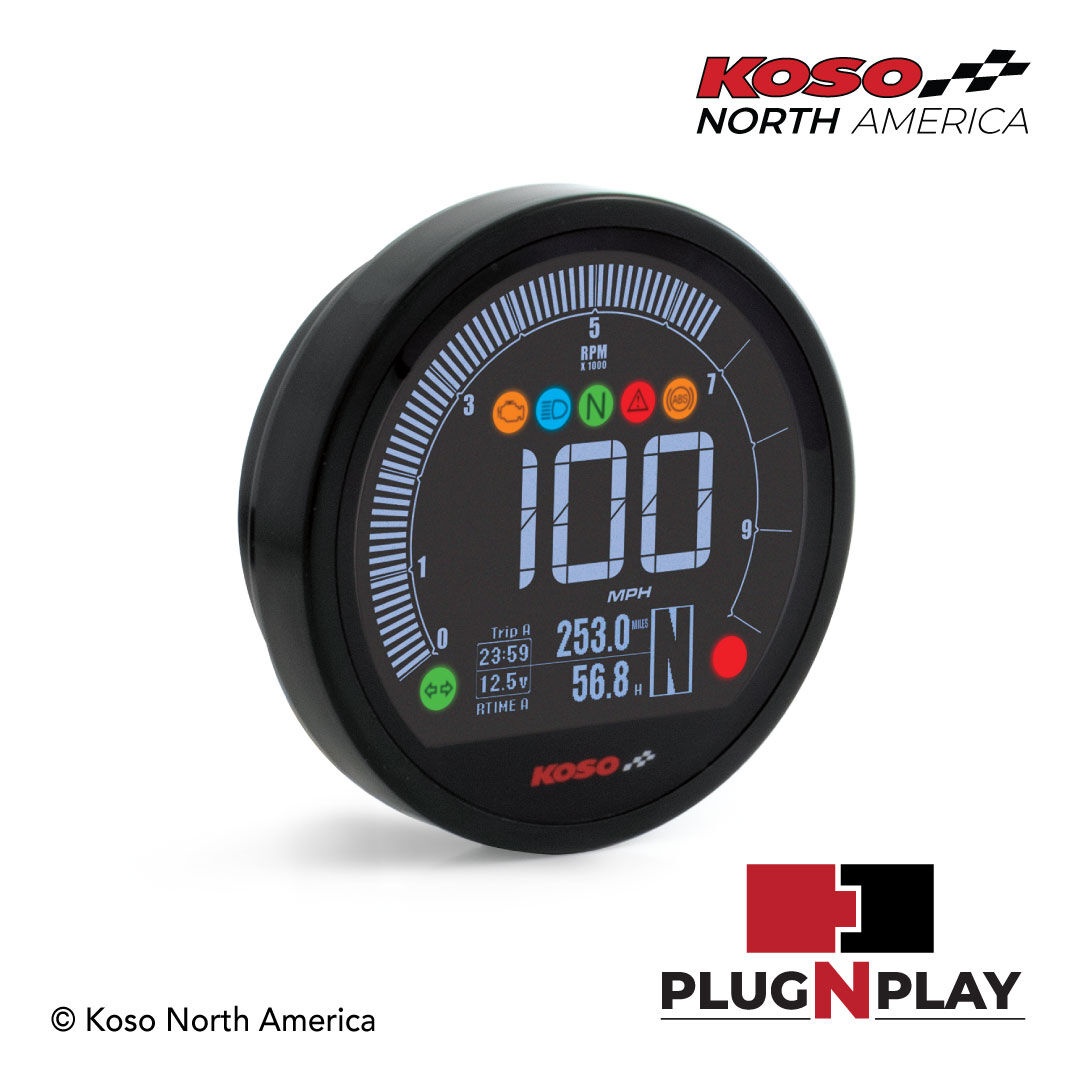

With its classical round shape, Koso’s newest addition to the DL-04 series is the perfect plug and play speedometer for Yamaha Bolt®.

Its innovative negative LCD screen features a variety of functions such as a gear indicator, 6 indicator lights, tachometer, voltage, clock and much more.

 Specifications (R= Range U=Unit)

• Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative)
• Tachometer R: 0 ~ 10,000 RPM
• Odometer (internal and external) R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter 1, 2 R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km)
• Tripmeter A (Daily riding mileage) R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km)

• Shift light warning R: 1,000~10,000 RPM U: 100 RPM

• Oil Maintenance R: 999~10,000 miles

• Tire percentage R: 50 ~ 200%|U: 1%

• Fuel meter R: ON, OFF, unusual warning

• Gear indicator R: N, 1 ~ 5

• Volt meter R: DC 8.0 ~ 18.0 V | U: DC 0.1 V

• Operating voltage R: DC 12V

• Clock R: 12 or 24 H format

• Temperature R: -22 ~ 437 °F (‑30 ~ 225 °C)

• Backlight brightness R: 1 - 5(darkest) ~ 5 - 5 (brightest)
• Indicator lights Turn signals / Neutral / Check engine / Warning / High beam / ABS /

  Anti-theft light (Red)

• Overheat warning setting R: 60~225  (140~437), When exceeding the set warning value, the value flickers, and the warning signal will be lit according to the setting U: 1 C (F)
