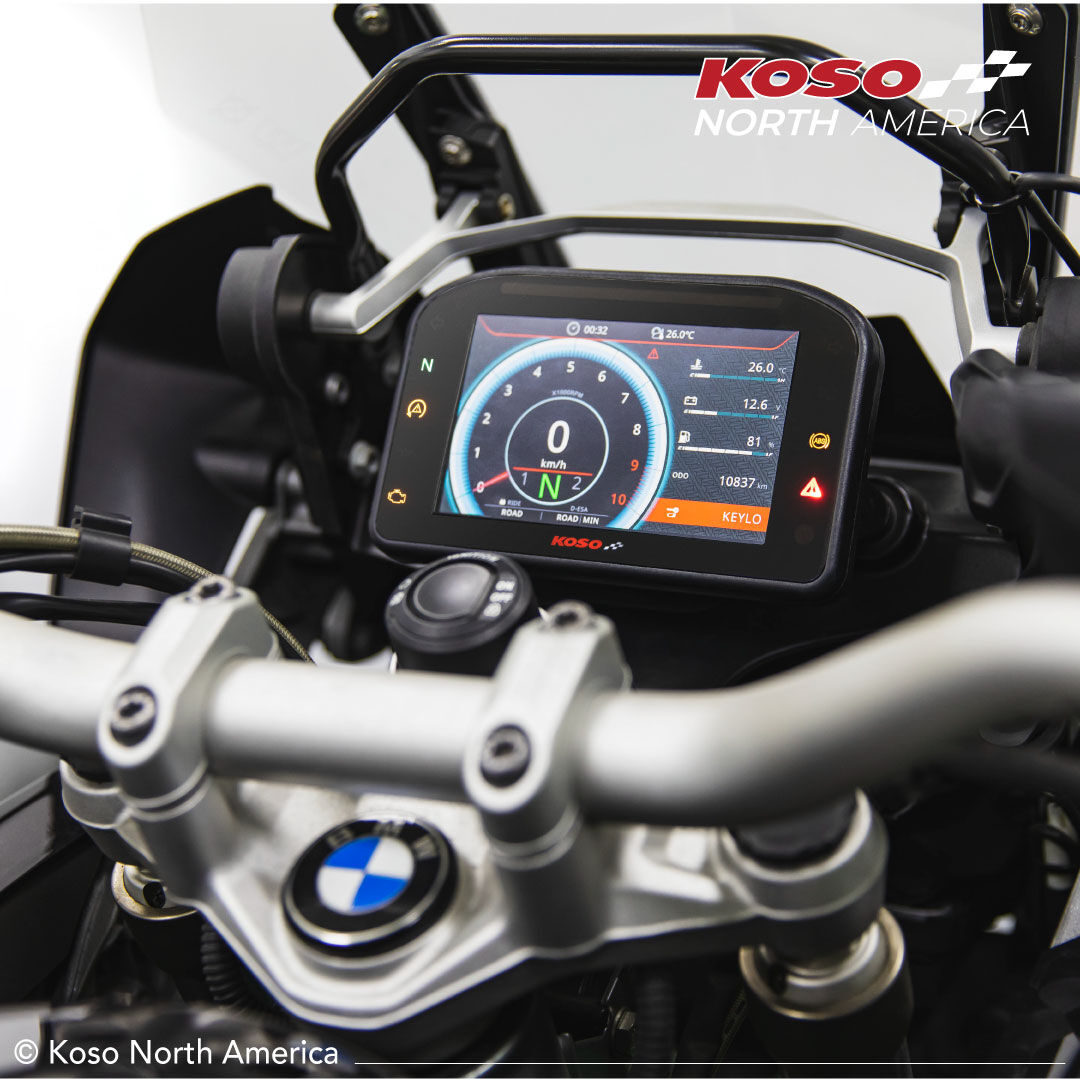

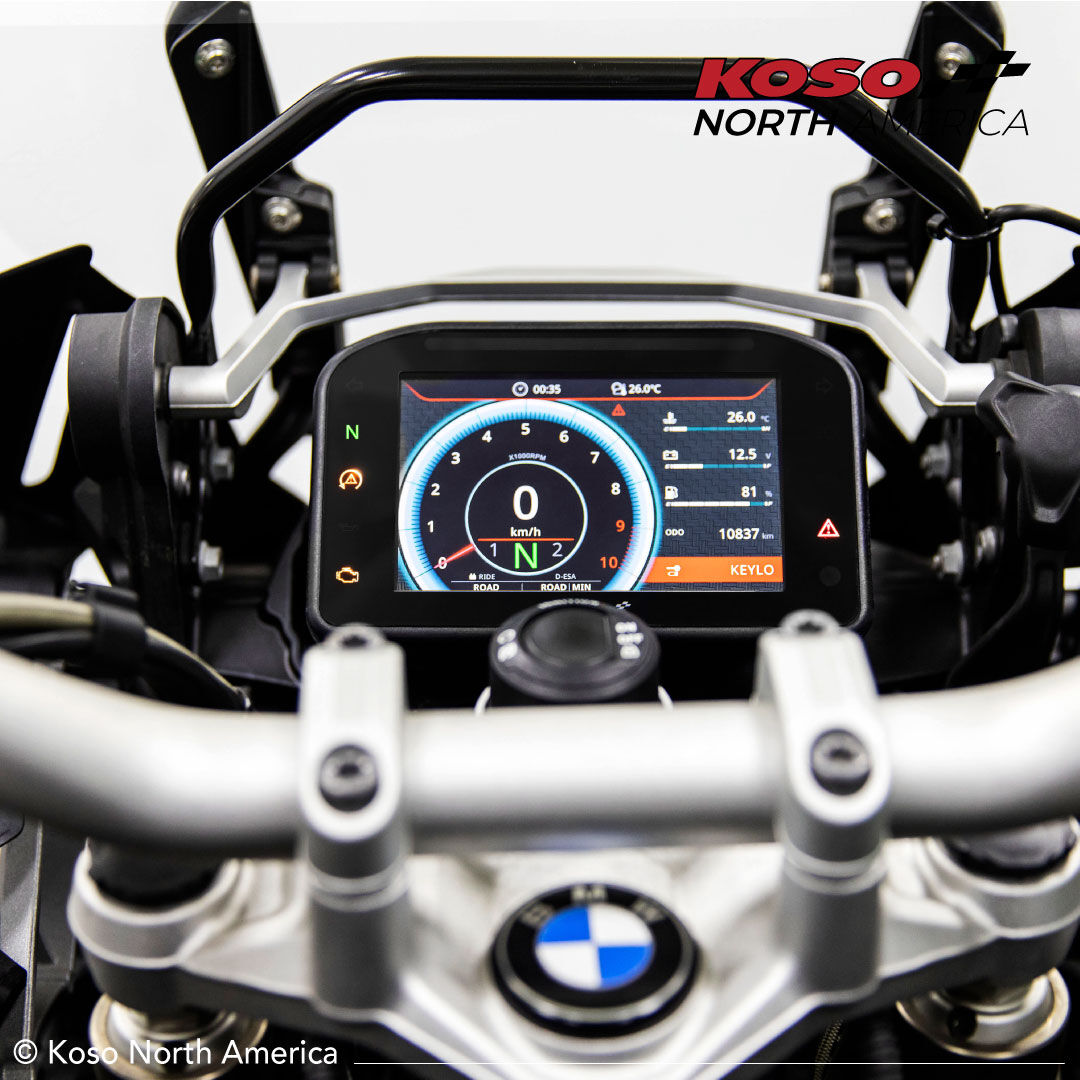

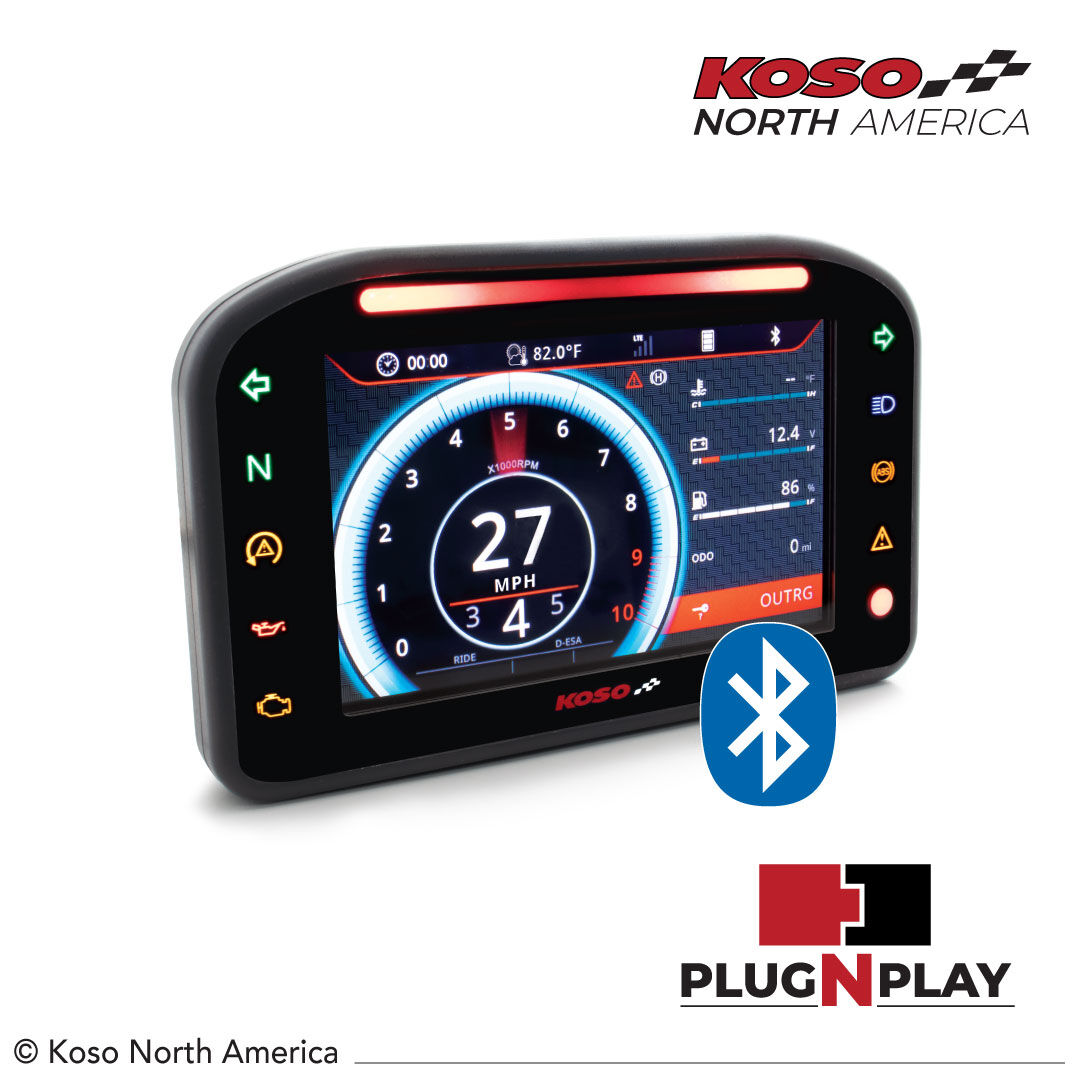

Koso's new RX-5 multifunction meter with TFT display is the perfect plug and play meter for the BMW® R1200GS. This easy to install gauge features a wide screen for increased ease of use like no other standard meter, while also adding an innovative look to your bike. The RX-5 allows you to connect your phone through its Bluetooth® option to see your incoming calls, the navigation system, the arrival time and much more. Featuring speed, odometer, tripmeter, hour meter, fuel meter, voltage, clock and stopwatch as well as 10 indicator lights, this meter will give you all the information you need.

Specifications
(R= Range U=Unit)
Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h (alternative)
Odometer (internal and external)
R: 0 ~ 999,999 miles (km) | U: 1 mile (km)
Tripmeter 1, 2
R: 0 ~ 9, 999.9 miles (km)
U: 0.1 mile (km)
RDTIME
R: 0 ~ 99,999 hr and then returns to 0 | U: 0,1 hr
Oil Maintenance
R: 300~10,000 miles (500~16,000 km) ~ -999 km (mile) | U: 1 mile (km)
• Value will decrease automatically
• Warning range: Text will turn red as   the value is 0 mile (km) and below.
Oil Maintenance 1, 2
R: 300~10,000 miles (500~16,000 km) ~
-999 km (mile) | U: 1 mile (km)
• Value will decrease automatically
• Warning range: Text will turn red as   the value is 0 mile (km) and below.

Max. speed record
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h (alternative)

Gear indicator
R: N, 1 ~ 6

Max. gear indicator
R: N, 1 ~ 6

Tachometer
R: 0 ~ 10,000 RPM

Shift light
R: 2,000 ~ 10,000 RPM
U: 100 RPM

Max. RPM
R: 0 ~ 10,000 RPM

Air temperature
R: -39.0 ~ 188.0 °F (‑39.5 ~ 87,0 °C)| U: 0.1 °F (°C)
Fuel meter
R: 0 ~ 100% | U: 1%
Riding mode
R: RAIN, ROAD, DYNA, ENDURO,
ENDURO PRO, DYNA PRO
Clock
R: 12 H or 24 H format
Volt meter
R: DC 8.0 ~ 18.0 V | U: DC 0.1 V
Low voltage warning
R: DC 8.0 ~ 13.0 V | U: DC 0.1 V
High voltage warning
R: DC 13.1 ~ 18.0 V | U: DC 0.1 V
Tire pressure
R: 0.0 ~ 3.5 bar(50 ~ 1,500 m)
U: 1/32 mile (50 m)
Tire pressure
R: 1/32 ~ 30/32 mile (1 ~ 50 psi 7~344Pa,0.0~3.5kg/cm2)
U: 0.1 bar(1 psi, 1kPa, 0.1kg/cm2)
Heated grip
R: OFF, 50%, 100%
Bluetooth connection status
R: Steady(connected), OFF(Unconnected)

Phone battery
R: 3 segments

Incoming phone call
D:
• Name or number
• “…” displayed  if > 12 letters
• “No Caller ID” displayed when there is no    name

Estimated arrival time
R: 00:00 23:59 (24H) 1:00 12:59 (12H)
(Android supported, IOS not supported.)
Estimated turning distance
R: 0~999m 1~999km (0~528ft, 0,1~999.9 mile)
U: 1m, 1km (1ft, 0.1 mile)(Android supported, IOS not supported)
Push info
R:
• Name: One line: no display when exceeding the range
• Content: One line: no display when exceeding the range
Operating system:
iOS : supported
Android : not supported
Backlight color
R: Auto(automatically switch according to ambient light : day mode display for a bright environment and Night mode display for a dark environment), Day mode, Night mode.

Indicator lights
Left indicator / Neutral / Check Engine / ASC light / Engine oil Level warning / Right indicator / RPM shift light / High beam / Composite warning / ABS

Effective temperature range
-4 ~ 185 °F (‑20 ~ 85 °C)

Storage temperature range
-22 ~ 194 °F (‑30 ~ 90 °C)

Operating Voltage
DC 12V
