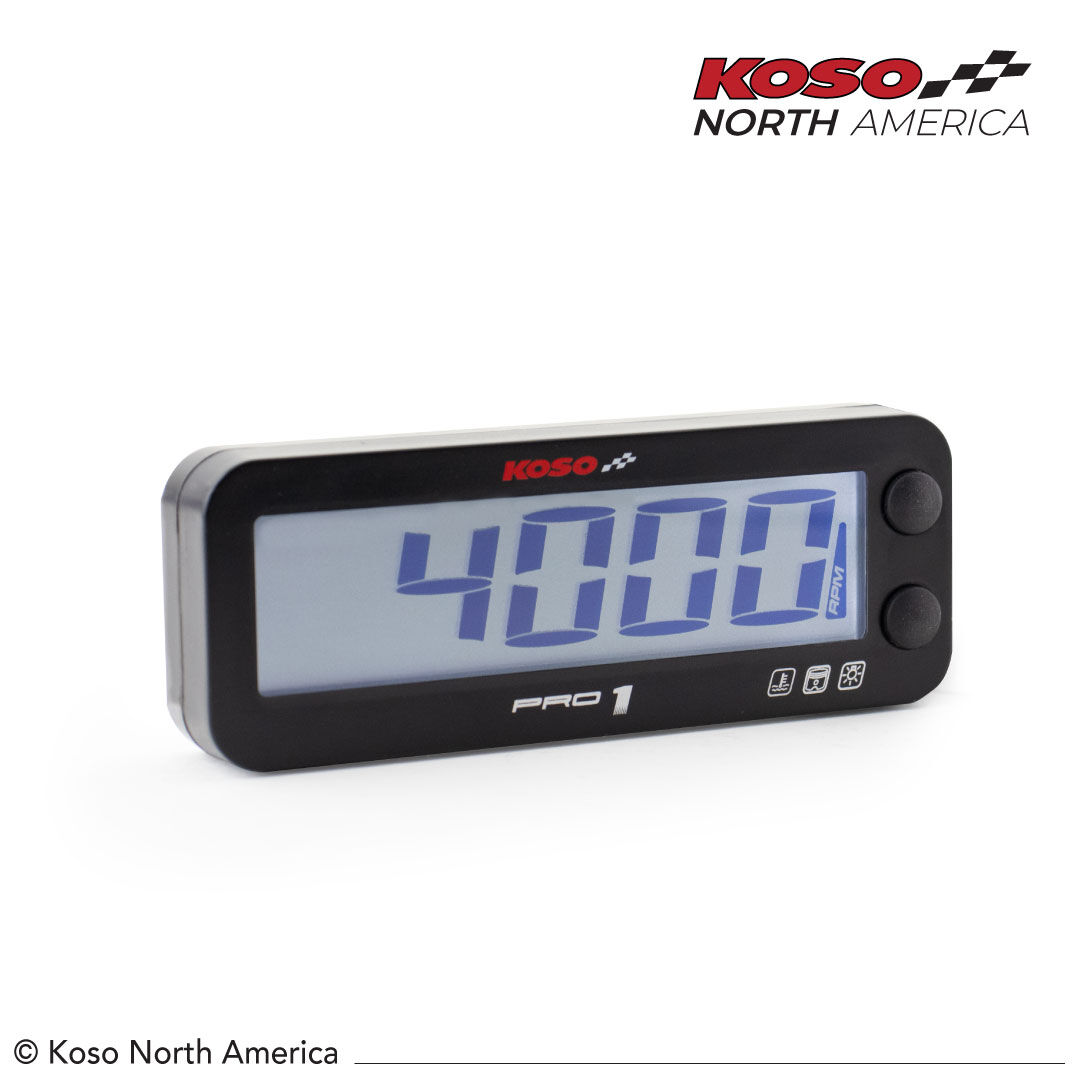

The new Pro 1 meter has a wide and bright backlit screen for easy reading even in the darkest conditions. It also features an RPM and temperature warning to help prevent damages to your engine. The Pro 1 meter is equipped with all the basic functions to provide you with important information: RPM reading, temperature and hour meter.

 Specifications

(R= Range U=Unit)

• Tachometer
  R: 0 ~ 20,000 RPM | U: 100 RPM
• Total hour meter
  R: 0 ~ 99,999 H | U: 1 H
• Hour meter A/B
  R: 0 ~ 99.999 H | Unit: 1 H
• RPM warning / shift‑light
  R: 5,000 ~ 20,000 RPM | U : 100 RPM
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest) | U : 20% per level
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)

• Maximum RPM record
  R: 0 ~ 20,000 RPM
• RPM input pulse
  R: 0.5, 1 ~ 6
• Volt meter
  R: DC 8 ~ 18 V
• Thermometer
  R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative)
• Top temperature record
  R: 0 ~ 482°F (0 ~ 250°C)

Instructions
