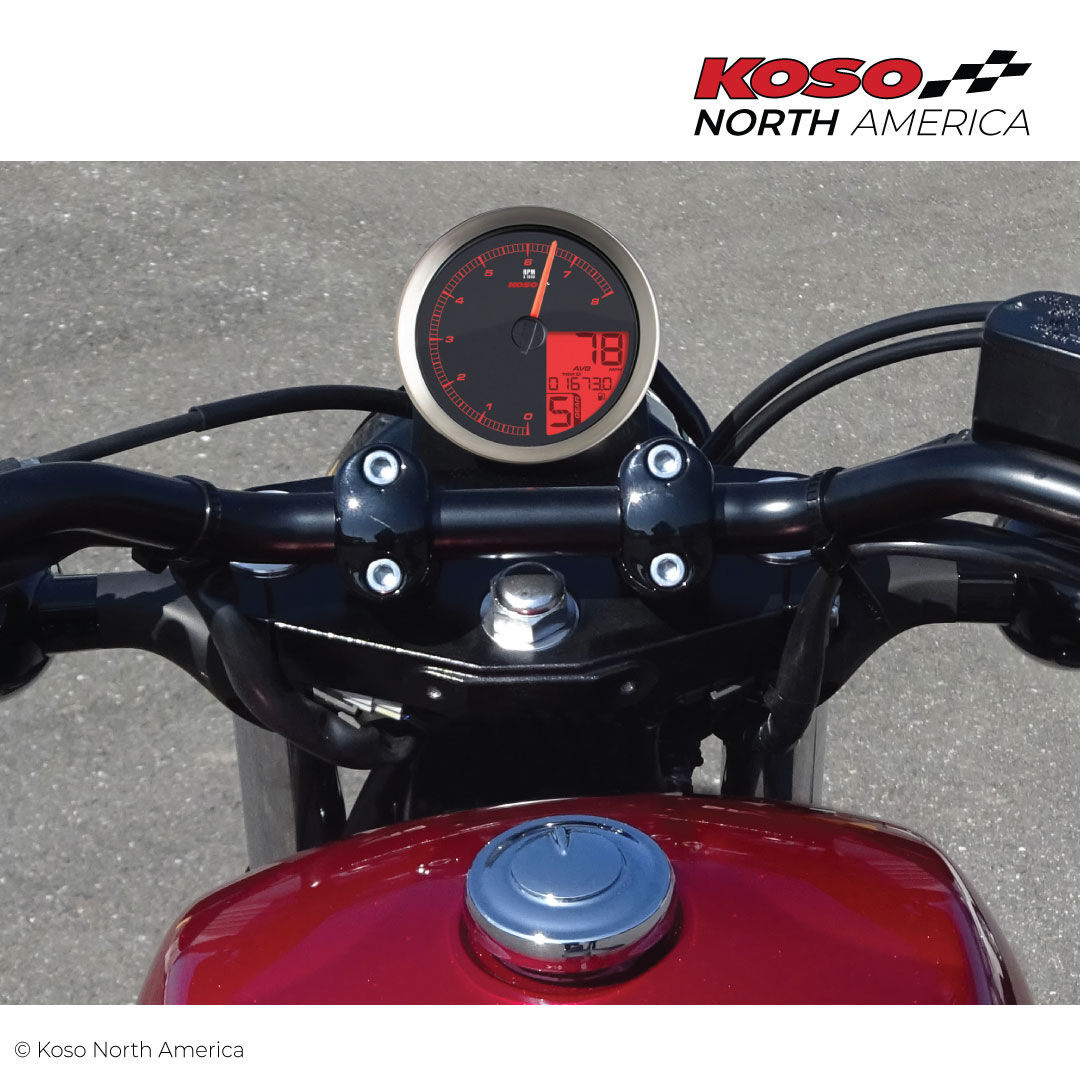

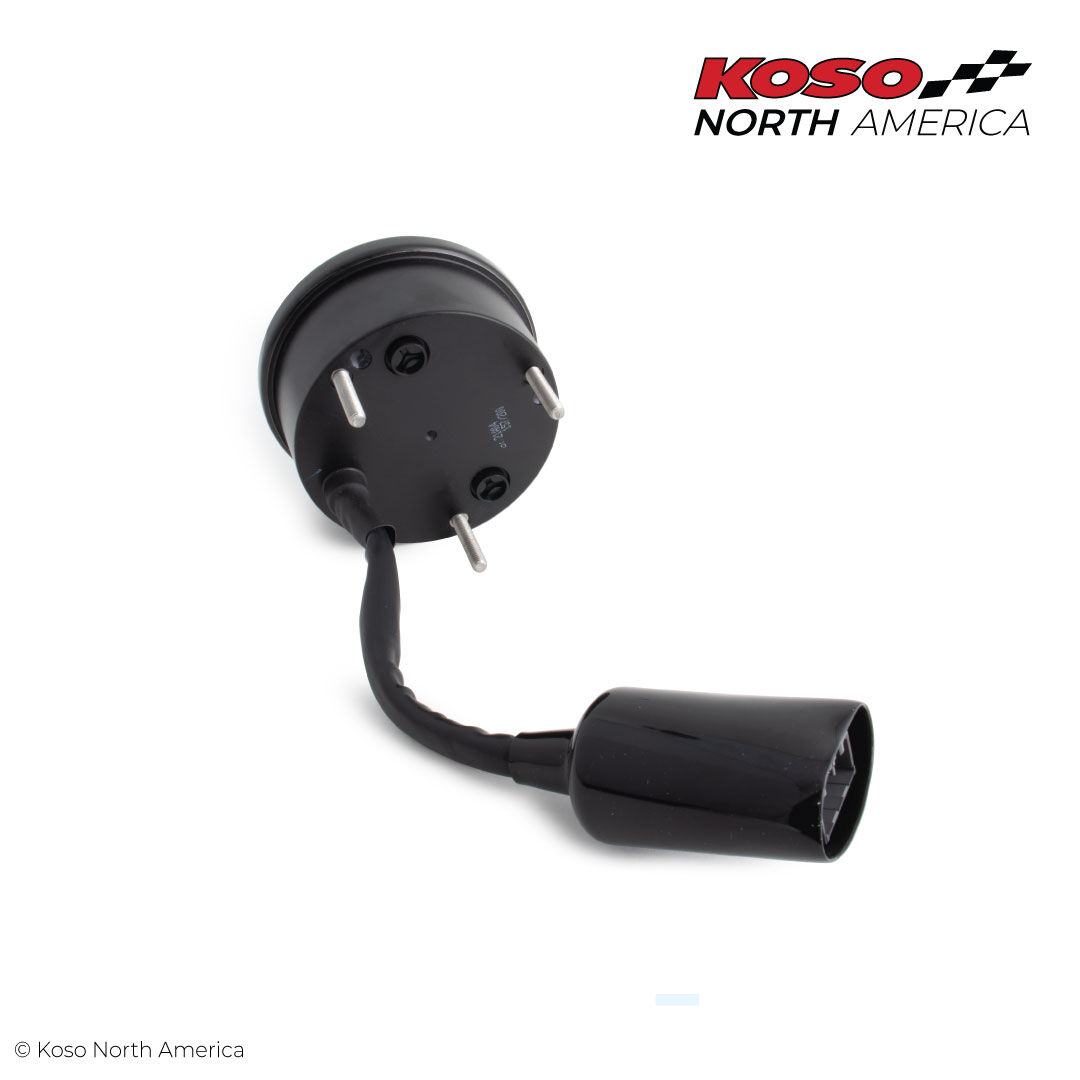

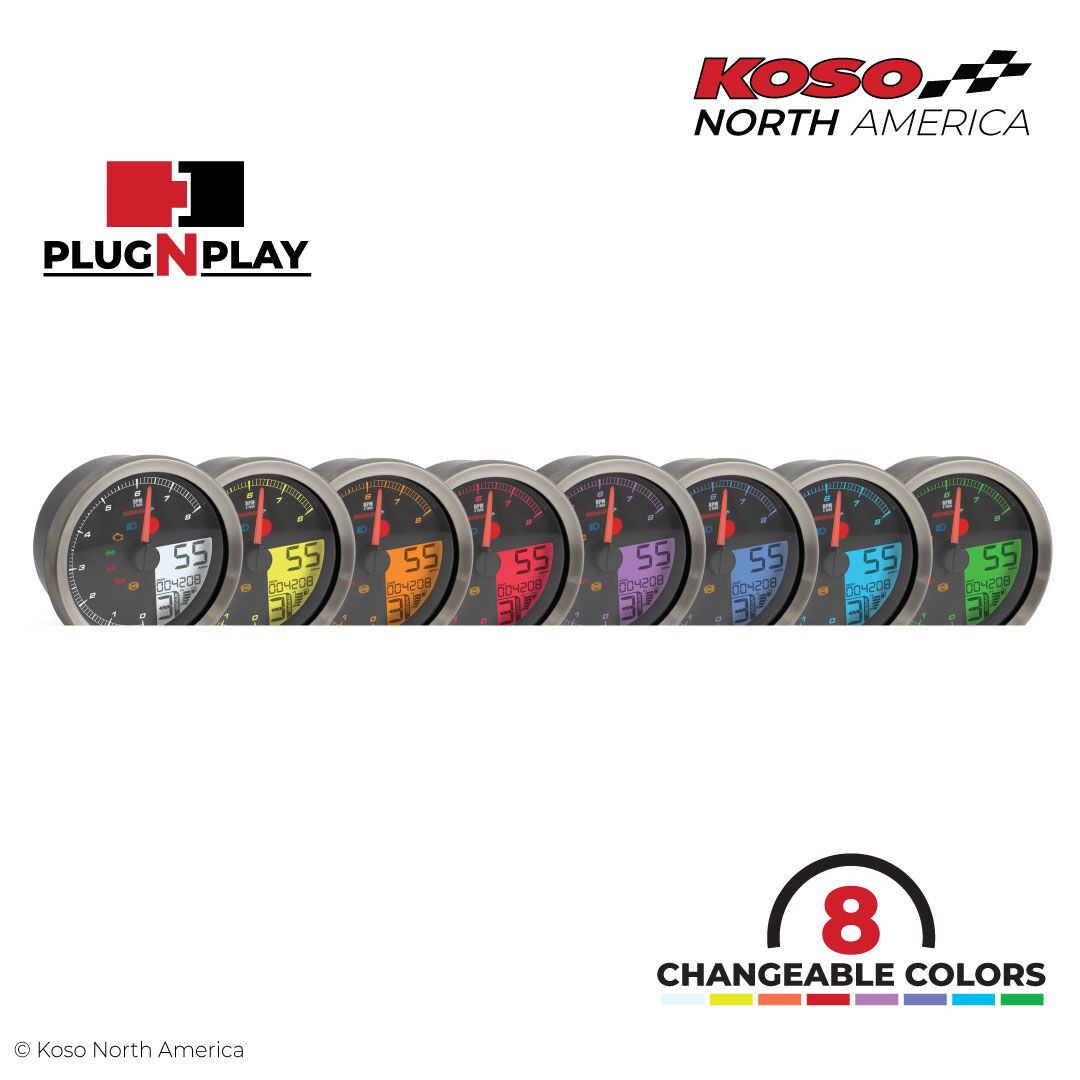

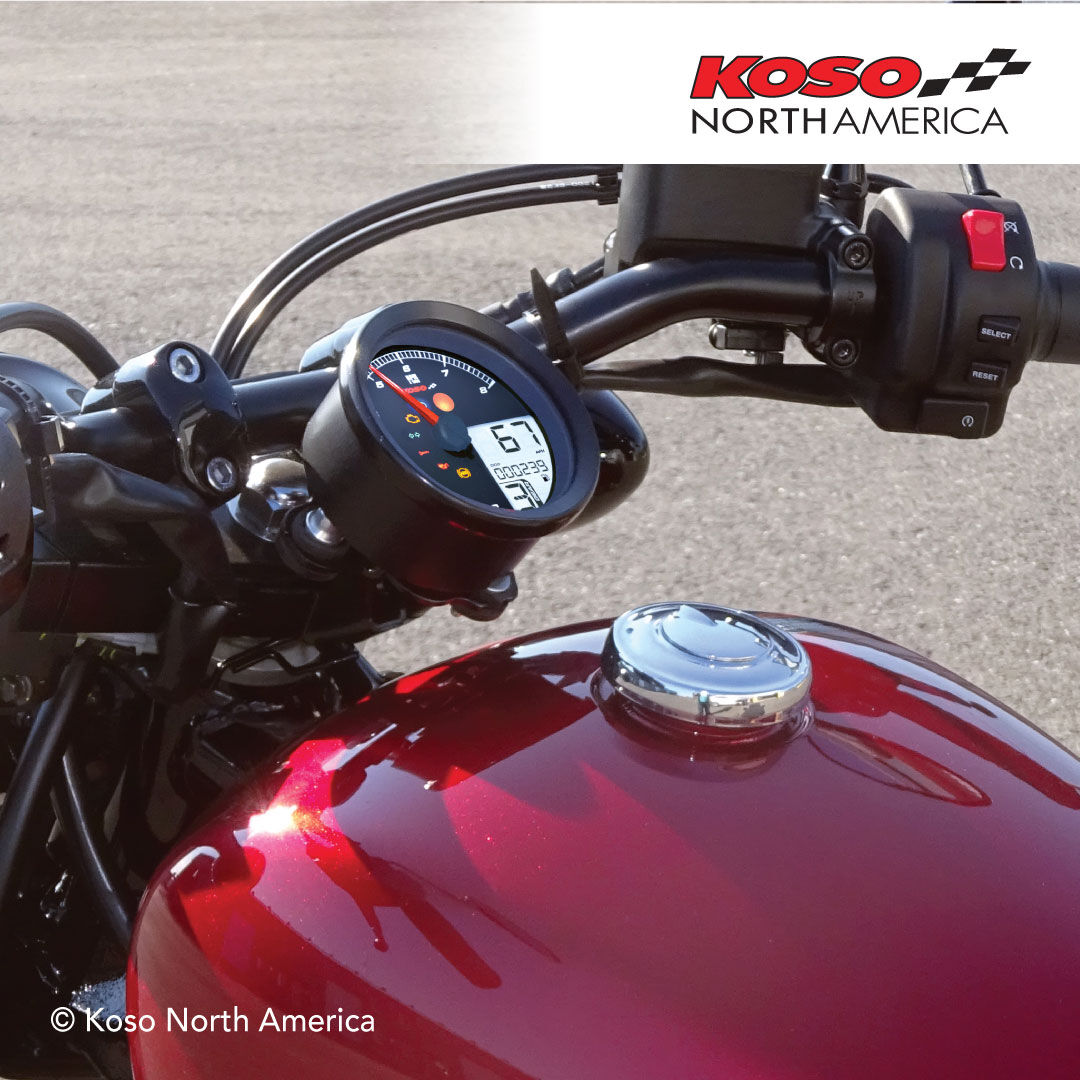

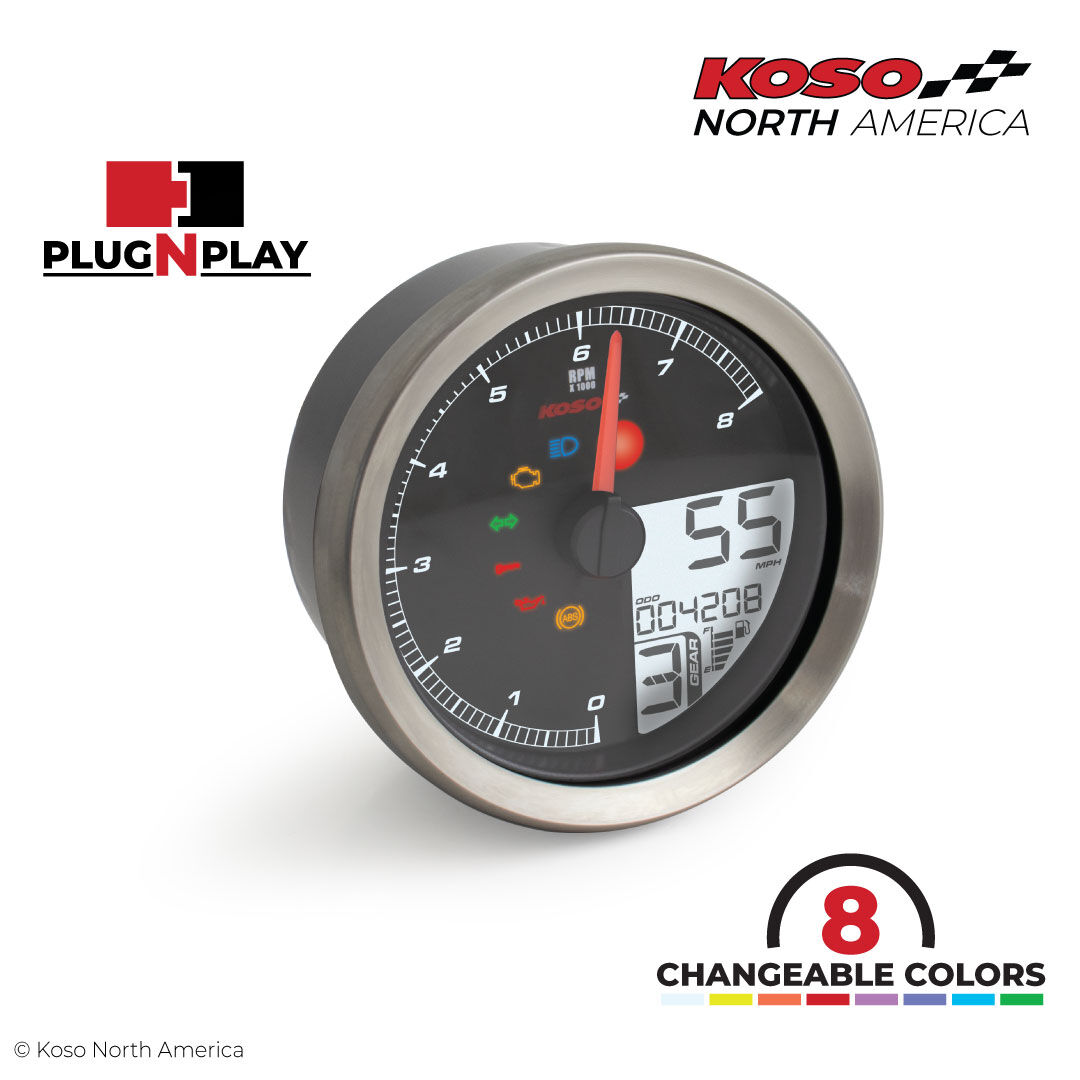

Yamaha Bolt® and Yamaha SRC 950 enthusiasts riders can now customize their motorcycle with our high‑quality plug & play TNT‑B meter. It is equipped with a 8 color changeable LCD display and also uses a strong stepper motor that provides a precise and fast RPM reading so that you can get in‑time information. Some of the great functions this meter has to offer are  : speed, RPM, indicator lights, fuel meter, and gear position indicator. Available in silver or black bezel, this is a great addition to your Yamaha Bolt®.

 Specifications
(R= Range U=Unit)

  • Speedometer
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
    U: 1 MPH or km/h
  • Overspeeding warning
    R: 19 ~ 225 MPH (30 ~ 360 km/h)
    U: 1 MPH or km/h
    Warning lights on ≥ value
  • Maximum speed record
    R: 0 ~ 360 miles (km)
  • Odometer
    R: 0 ~ 99,999 miles (km)
    U: 1 mile (km)
  • Tripmeter A/B
    R: 0 ~ 999.9 miles (km)
    U: 0.1 mile (km)
  • Motor oil maintenance
    R: Close / 300 ~ 10,000 miles (500 ~ 16,000 km)
    U: 100 miles (km)
  • Fuel reserve tripmeter
    R: 0 ~ 9,999.9 miles (km)
    U: 0.1 mile (km)
  • Tire percentage
    R: 50 ~ 200 % | U: 1 %
  • Gear indicator
    R: Off, N, 1, 2, 3, 4, 5
  • Maximum gear level record
    R: Off, N, 1, 2, 3, 4, 5
    Record gear level at maximum
  • RPM Tachometer
    R: 0 ~ 8,000 RPM | U: 100 RPM
  • Shift light warning
    R: 1,000 ~ 8,000 RPM | U: 100 RPM
    Warning light on ≥ value
  • Thermometer
    U: °F or °C (alternative)
  • Engine temperature meter
    R: -22 ~ 437 °F (-30 ~ 225 °C) U: 1 °F or °C (alternative)
  • Overheat warning
    R: 140 ~ 437°F (60 ~ 225°C)
  • Maximum temperature record
    R: -22 ~ 437 °F (-30 ~ 225 °C)
    U: 1 °F or °C (alternative)
  • Round indicator light
    R: -22 ~ 437 °F (-30 ~ 225 °C)
  • Warning cause
    Speeding warning light, RPM shift light, Overheat warning light, Low voltage warning, Fuel warning, Oil maintenance, Highest gear
  • Warning method
    Lit(L), Slow flash (S), Flash (F)
  • Low fuel indicator
    R: ON / OFF / Flash
  • Clock
    R: 12 H or 24 H format
  • Under voltage warning
    R: DC 8 ~ 18 V | DC 0.1 V
  • Backlight brightness
    R: 1/5 (darkest) ~ 5/5 (brightest)
  • Backlight colors
    White / Light Blue / Blue / Purple / Red / Orange / Yellow / Green
  • Indicator lights
    RPM shift light / Check engine /
    Oil level / High beam / Turn signals /
    ABS / Anti-theft
  • ABS indicator
    R: Close (OFF) / Open (ON)
  • Effective temperature range
    14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V

Instructions

  Download PDF https://youtu.be/3kOiE0vK_J0 https://youtu.be/XIpKguOt4V4 https://youtu.be/9PfyGrLOn6U https://youtu.be/Du1K9WVO2IY
RRP 765.95
Brand Koso
