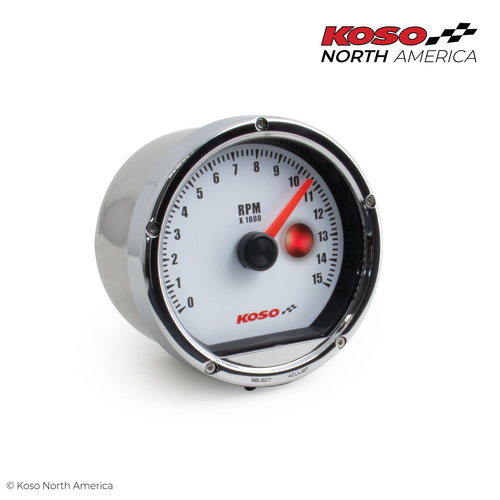

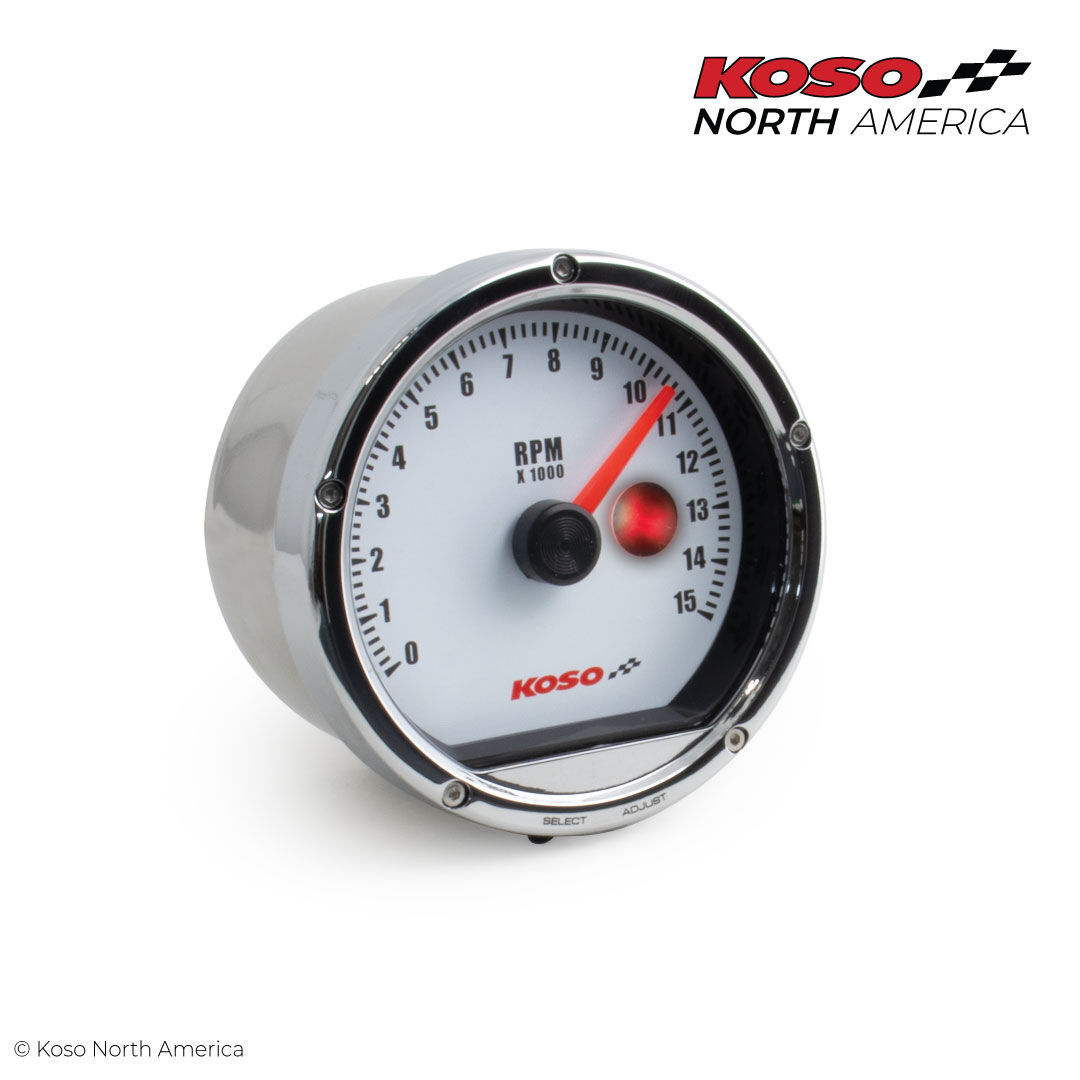

Built with the best components and strongest stepper motor on the market, this TNT‑01R tachometer is the perfect addition for all motorcycles. Its large dial face and backlight make it easy to read all day long. Available in black dial face with black casing and white dial face with chrome casing.

 Specifications
(R= Range U=Unit)

  • Tachometer
    R: 0 ~ 15,000 RPM

  • Shift light
    R:     0 ~ 15,000 RPM
    U: 500 RPM

  • Warning
    Light on / Flash

  • Internal display
    < 0.5 second
  • RPM input signal number
    R: 0.5, 1 ~ 6
  • RPM input pulse
    R: HI‑ACT (positive wave pulse)
    LO‑ACT (negative wave pulse)
  • Backlight brightness
    R: 1/5 (darkest) ~ 5/5 (brightest)
  • Effective temperature range
    14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V

Instructions

  Download PDF

Where Can I Buy This Item In Australia?

If you’d like to buy this product as a customer, please visit our retailers page to find a stockist near you.

Alternatively, contact us and we can assist further.


RRP (For Retailers) $363.95
Brand Koso
