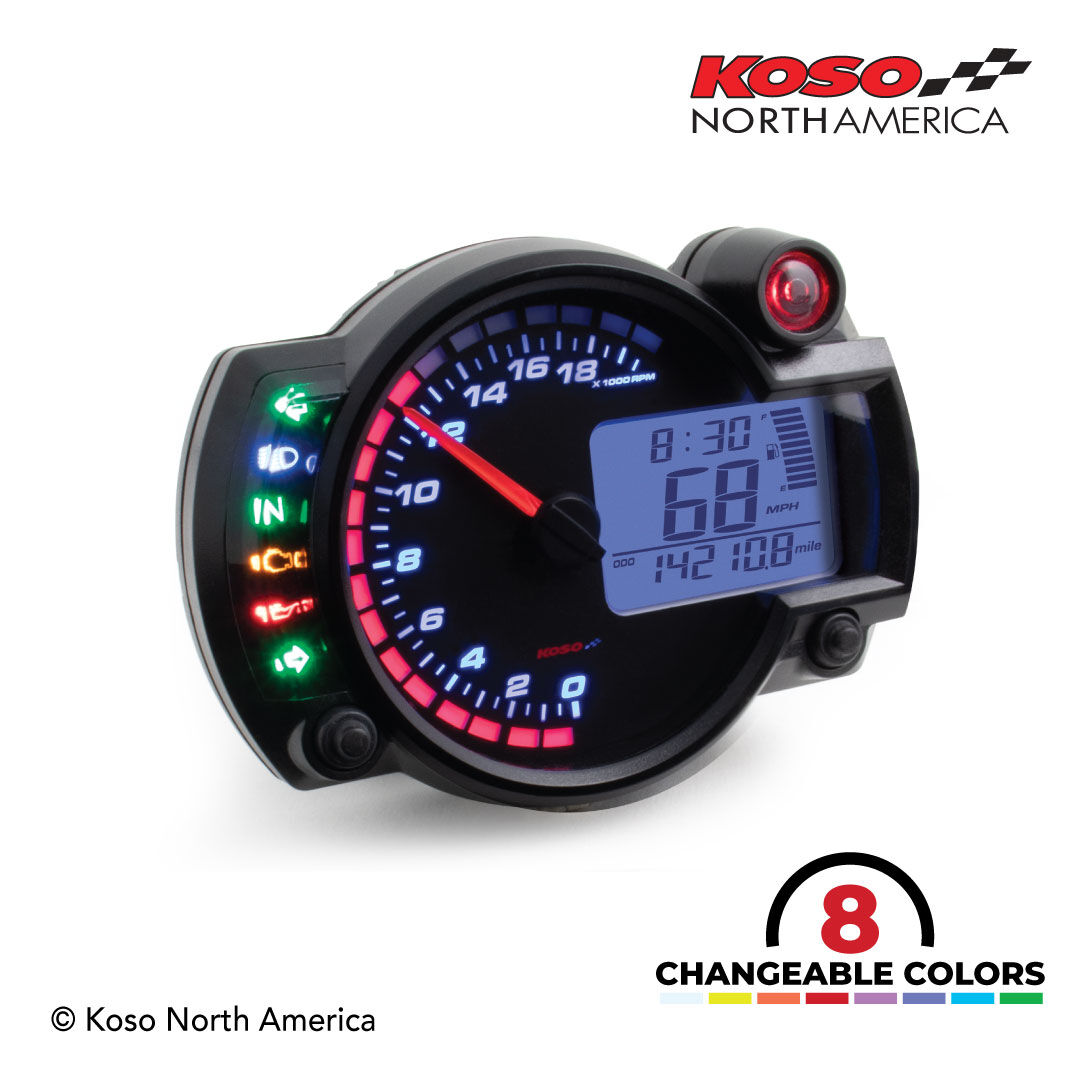

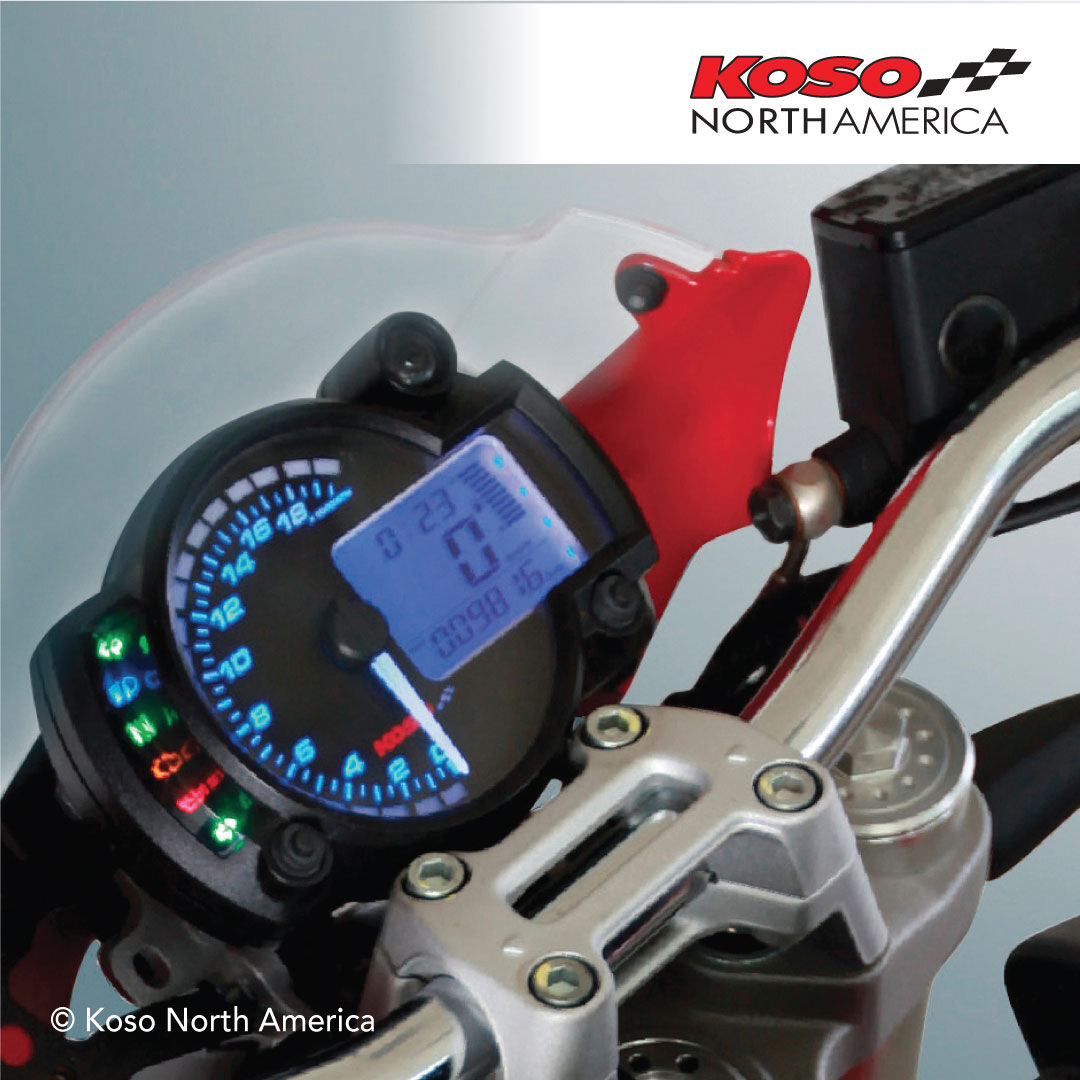

The RX‑2N has been developed with the best components and latest technology on the market. The illuminated needle with LED pointer makes it very easy to read even at night. This instrument features many different functions such as speed, odometer, tripmeter, RPM, shift light, temperature, indicator lights and many other great functions. The 10,000 RPM and 20,000 RPM version give you the opportunity to better choose the right RPM scale for your bike.

 Specifications (R= Range U=Unit)

  • Speedometer
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
    U: 1 MPH or km/h (alternative)
  • Odometer
    R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
  • Tripmeter A/B
    R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
  • Speeding warning light
    R: 20 ~ 225 MPH (30 ~ 360 km/h)
    U: 5 MPH (km/h)
  • Top speed record
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
  • Tire circumference
    R: 300 ~ 2,500 mm | U: 1 mm
    Sensitive point: 1 ~ 60
  • Tachometer
    R: 0~20,000 RPM
    U: 250 or 500 RPM
  • RPM shift‑light
    R: 1,000 ~ 10,000 or 20,000 RPM
    U: 100 RPM
  • Pre-shift‑light
    R: -500 ~ - 3,000 RPM before shift light
    U: 100 RPM
  • RPM input pulse
    R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6
  • Stroke / piston setting
    2 stroke: 1, 2, 3, 4 pistons
    4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
  • Digital temperature (Water & Oil)
    R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 ˚F or ˚C (alternative)
  • Temperature level meter (Water & Oil)
    R: 68 ~ 248 °F (20 ~ 120 °C)
    R: 10 levels | U: 1 level = 50 °F or 10 °C (alternative)
  • Over Temperature warning (Water & Oil)
    R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C)
  • Top temperature record
    R: 32 ~ 482 °F (0 ~ 250 °C)
  • Fuel meter
    R: 10 levels | U: 1 level = 10 %
  • Fuel resistance
    R: 100 Ω / 510 Ω / fuel switch / no display
  • Low fuel warning
    R: 10 ~ 50% | U: 10%
  • Clock
    R: 24 H format
  • Perpetual calendar
    R: 2,000~ 2,099 A.D.
  • Target speed timer
    D: 20 ~ 225 MPH (30 ~ 360 km/h) R: 5 MPH (km/h)
  • Target distance timer
    D: 1/32 ~ 20/32 mile (50 ~ 1,000 m)
    U: 1/32 mile (50 m)
  • Top speed timer
    Speed : 0 ~ 225 MPH (0 ~ 360 km/h)
    Distance : 0 ~ 3,280 feet (0 ~ 999 m)
    RPM : 0 ~ 20,000 RPM
    Timer : 0 ~ 9’59”99
  • Indicator lights
    Neutral / High beam / Turn signals / Check engine / Oil level / Temperature / Speeding / RPM shift light
  • Effective temperature range
    14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    DC 12 V
  • Sensor included
    Passive speed sensor : BF640J06
    Temperature sensor: BF030000

Instructions

  Download PDF
RRP 842.95
Brand Koso
