LIKE NEW

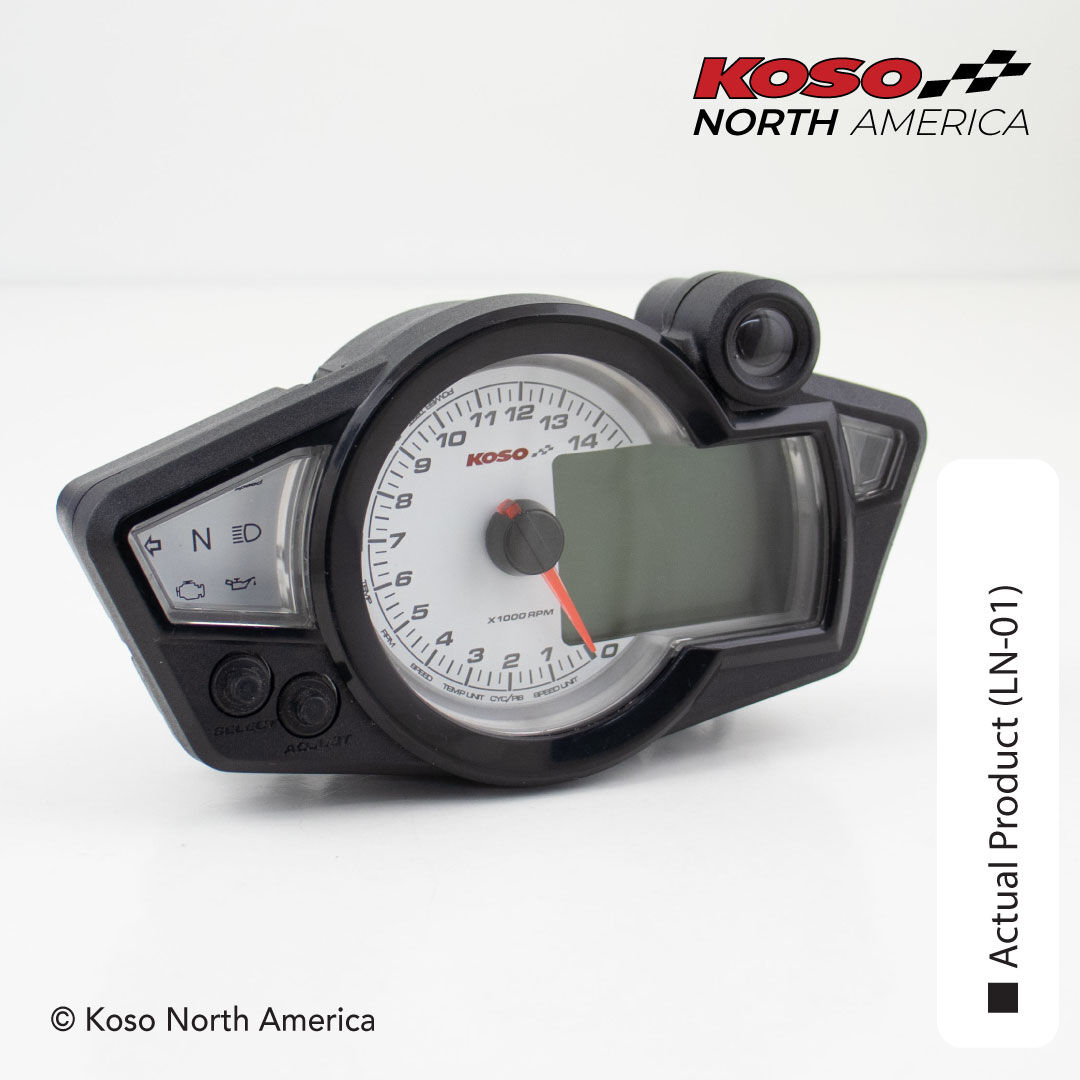

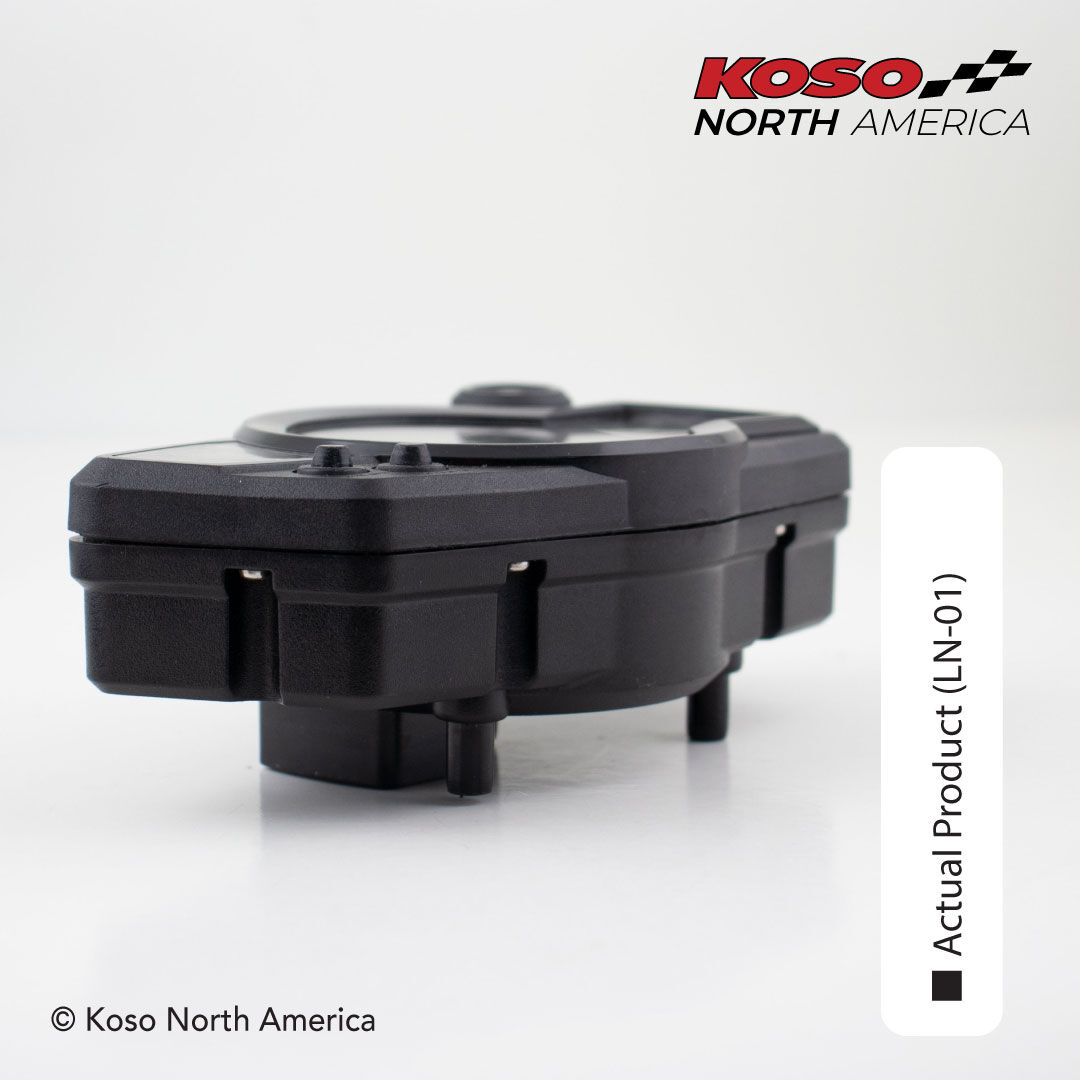

This RX-1N GP style multifunction gauge was used in a video and photoshoot. It was connected to a simulator has never seen any daylight or bad weather. It has been running for about +/- 2hr

• A single unit is available
• 1 year warranty
• +/- 2 hr of usage on the meter

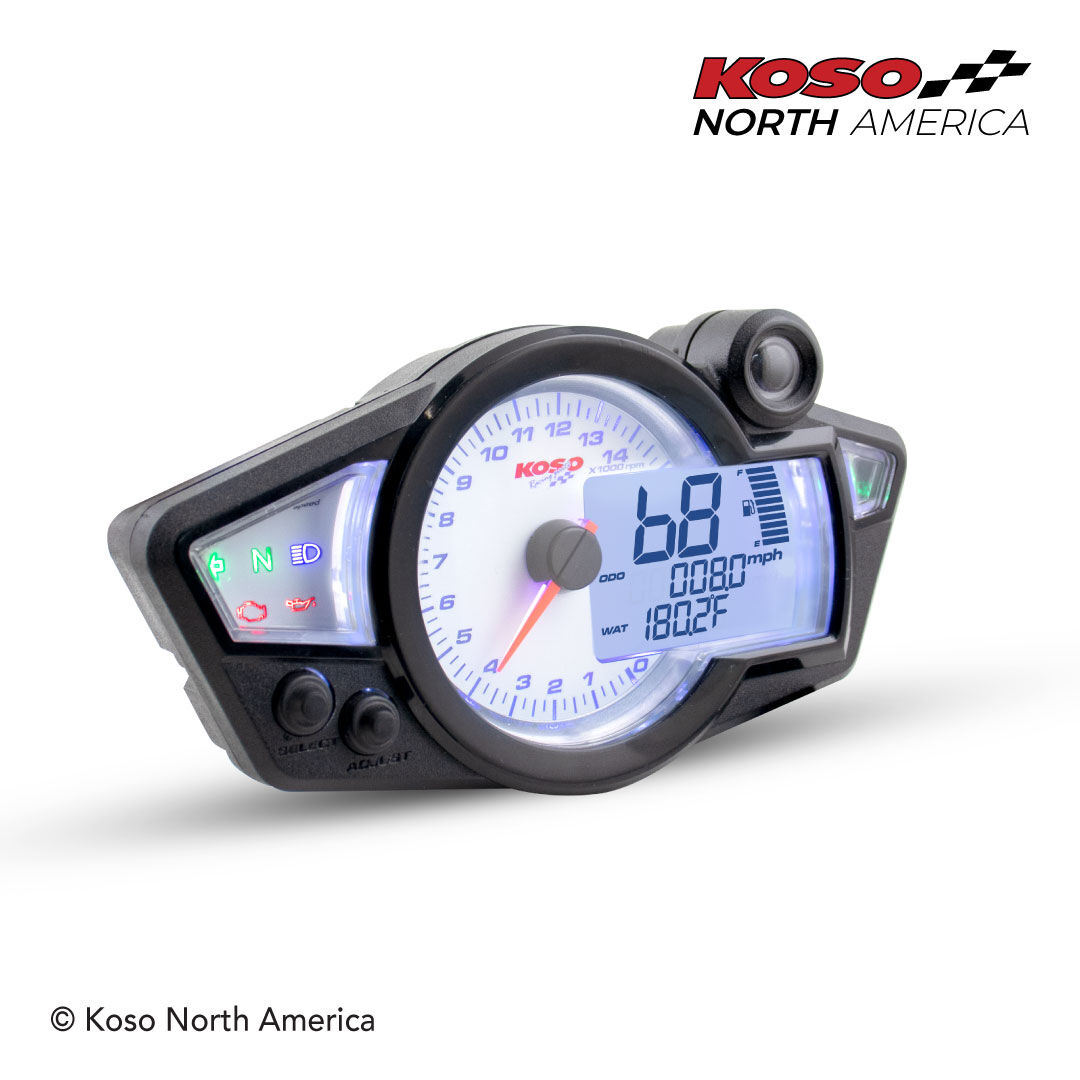

With its attractive shape and size, the RX‑1N gauge is a perfect meter for your bike. Whether you have a sports bike, naked bike, street fighter or anything in between, this gauge will surely impress with its easy to read display and multiple functions available including speedometer, tachometer, tripmeter, odometer, shift light, temperature, indicator lights and many more. This meter has every function you need to monitor your bike’s performance.

 Specifications (R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: MPH or km/h (alternative)
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Speeding warning light
  R: 20 ~ 110 MPH (30 ~ 180 km/h)
  U: 5 MPH (5 km/h)
• Top speed record
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH(km)
• Tire circumference
  R: 1,000 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 6
• Tachometer
  R: 0~15,000 RPM | U: 100 RPM

• RPM shift‑light
  R: 5,000 ~ 15,000 RPM | U: 100 RPM
• Maximum RPM record
  R: 0 ~ 15,000 RPM
• Stroke / piston setting
  2 stroke: 1, 2, 3, 4 pistons
  4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
• Digital thermometer (Water & Oil)
  R: 32 ~ 248 °F (0 ~ 120 °C)
  U: 0.1 ˚F or ˚C (alternative)
• Temperature level meter
  R: 68 ~ 248 °F (20 ~ 120 °C)
  R: 10 levels | U: 1 level = 50 °F or 10 °C (alternative)
• Over Temperature warning (Water & Oil)
  R: 140 ~ 248°F (60 ~ 120°C) | U: 1°F (°C)
• Top temperature record
  R: 32 ~ 248 °F (0 ~ 120 °C)

• Fuel meter
  R: 10 levels | U: 1 level = 10 %
• Fuel resistance
  R: 100 Ω / 510 Ω
• Low fuel warning
  R: 10 ~ 50% | U: 10%
• Clock
  R: 24 H format
• Target speed timer
  D: 20 ~ 225 MPH (30 ~ 360 km/h)
  R: 5 MPH (km/h)
• Target distance timer
  D: 1/32 ~ 20/32 mile (50 ~ 1,000 m)
  U: 1/32 mile (50 m)

• Top speed timer
  Speed : 0 ~ 225 MPH (0 ~ 360 km/h)
  Distance : 0 ~ 3,280 feet (0 ~ 999 m)
  RPM : 0 ~ 15,000 RPM
  Timer : 0 ~ 59’59”99
• Indicator lights
  Neutral / High beam / Turn signals / Check engine / Oil level / Temperature / Speeding / RPM shift light
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Sensor included
  Passive speed sensor : BF019005
  Temperature sensor: BF030125
